MFRC-522 RC522 RFID Module

₹125.00

Integrated MF RC522
13.56MHz contactless communication card chip.
The low-voltage, low-cost, small size of the non-contact card chip to read and write.
Working current：13 – 26mA / DC 3.3V
Standby current：10 – 13mA / DC 3.3V
Sleep current：<80uA
Peak current：<30mA
Working frequency：13.56MHz
Card reading distance ：0～60mm （Mifare1 card）

GTIN: 8900000015696 SKU: ol-p-0000296

Category: RFID Modules & Cards

Tags: RC522, RFID Module, RFID Reader

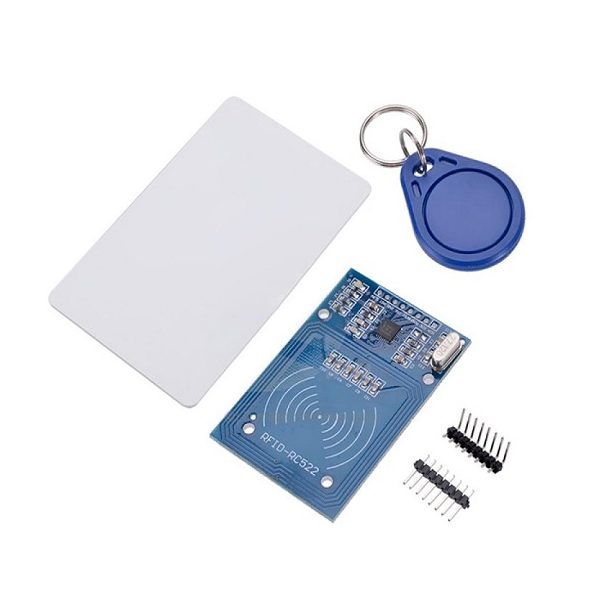

RC522 RFID Module

RC522 RFID Module is based on the MFRC522 controller from NXP semiconductors. The module can supports I2C, SPI and UART and normally is shipped with a RFID card and key fob. It is commonly used in attendance systems and other person/object identification applications.

Weight	10 g
Dimensions	7 × 5 × 2 cm
Working current	@3.3V 13 – 26mA
Standby current	@3.3V 10 – 13mA
Working frequency	13.56MHz
Operating Temperature (°C)	-20 to 80
PCB Size ( L x W ) mm	60 x 40
Data communication speed	10Mbit/s Max
