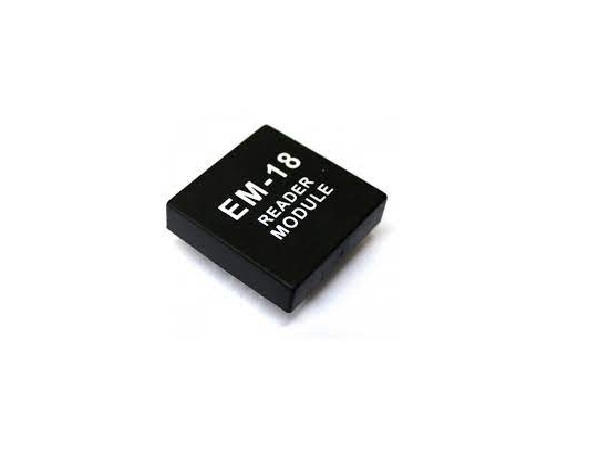

EM-18 RFID Reader module

EM18 is a RFID reader module which is used to read RFID tags of frequency 125 kHz. After reading tags, it transmits unique ID serially to the PC or microcontroller using UART communication or Wiegand format on respective pins. Radio-frequency identification (RFID) is the wireless non-contact use of radio-frequency electromagnetic fields to transfer data, for the purposes of automatically identifying and tracking tags attached to objects. The tags contain electronically stored information. This EM-18 RFID Reader is a Tiny, simple to use RFID reader module. With a built in antenna, the only holdup is the 2mm pin spacing.

Application of EM-18 RFID Reader Module:-

  • Smart Access Control System.
  • Card Based Entry System.
  • Attendance System.
  • DIY projects requiring need for RFID based System
Weight 10 g
Dimensions 3.2 × 3.2 × 0.8 cm
Operating Voltage

5V DC Supply

Reading Distance

6-10 cm

Read frequency

125 kHz

Current

<50 mA

Operating Frequency

125 Khz

Compatible Tags

125KHz EM4100 Tags
