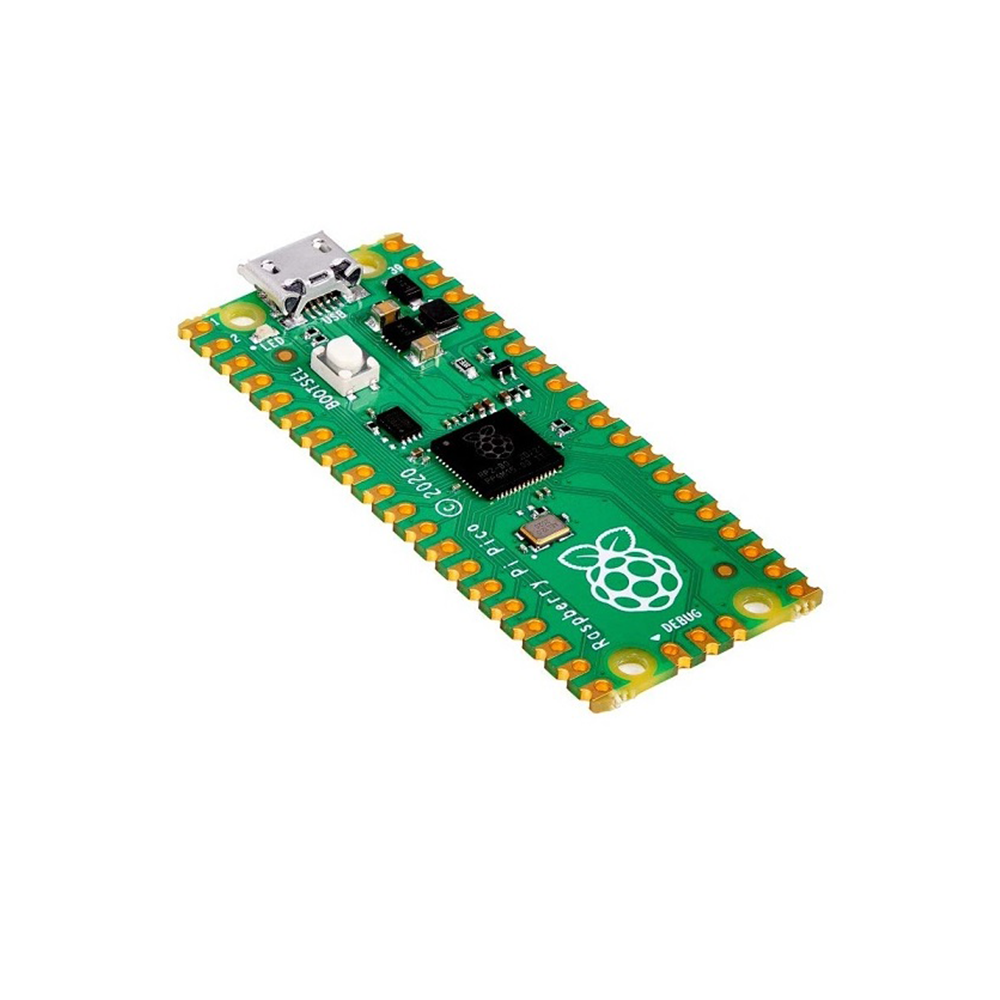

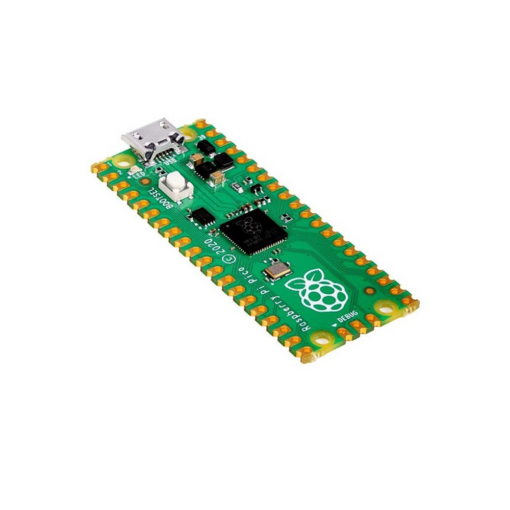

Raspberry Pi Pico is a small high-performance Micro-controller board built using a brand RP2040 chip, designed by Raspberry Pi. RP400 is the first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly micro-controller. It is supported with both c / c ++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product-option to begin with.

The Raspberry Pi Pico is a powerful board which can controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands. Programmable in C and MicroPython, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file. More experienced users can take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.

Weight 25 g
Dimensions 12 × 12 × 10 cm
Main Chip

Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz

GPIO

26 × multi-function GPIO pins

Input Voltage

5V/2.5A DC via micro USB or GPIO

Memory

264KB of SRAM, and 2MB on-board QSPI Flash

Hardware Interface

2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
