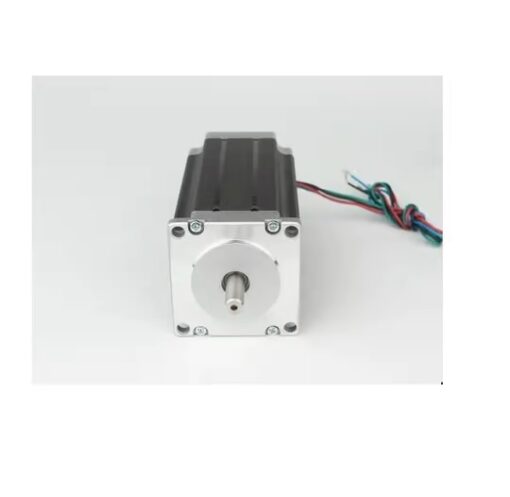

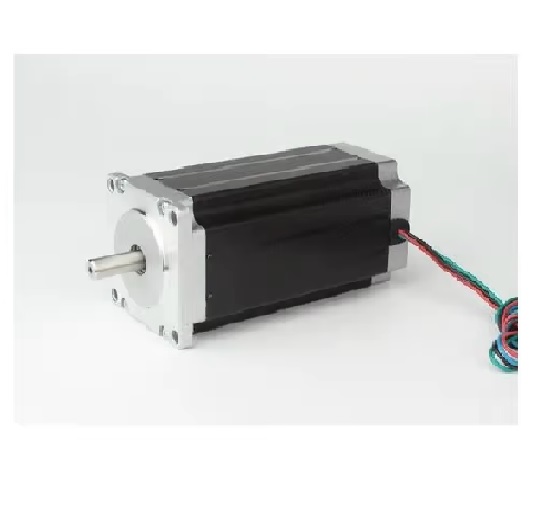

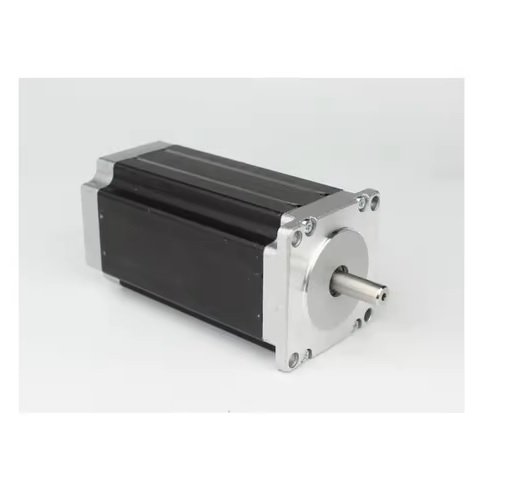

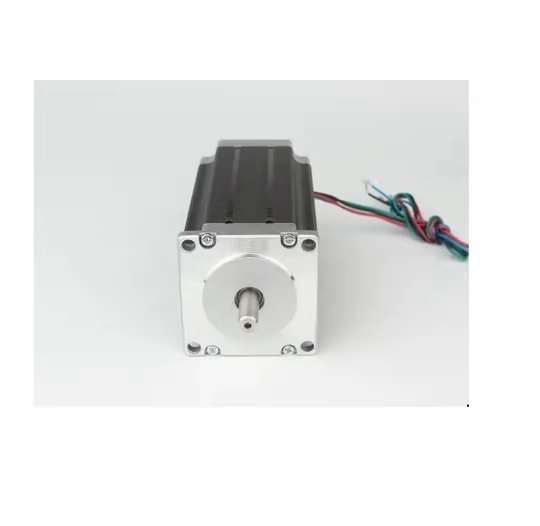

NEEMA 23

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The Neema 23 3.1N-m Stepper motor can provide 3.1N-m of torque at 4.2A current per phase.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Neema 23 3.1N-m Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.



Weight 1642 g
Dimensions 14 × 6 × 6 cm
Motor Type

Neema 23

Step Angle

1.8

Motor Body Length(mm)

112

Operating Current (A)

4.2

Resistance (Ω)

0.9

Inductance (mH/Phase)

3.8

Load Torque(N-CM)

3.1

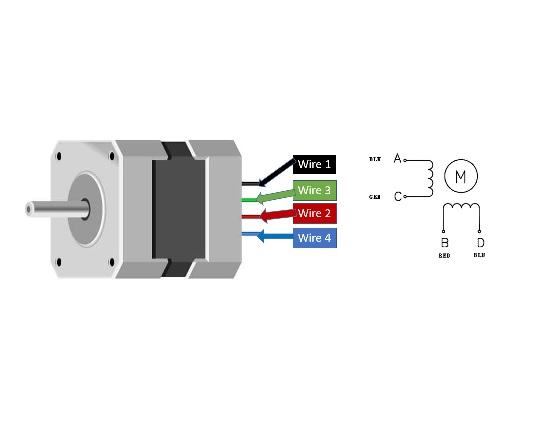

No. of Leads

4

Detent Torque g.cm

1200

Rotor Inertia (gm-cm2)

800

Shaft Type

Round

Shaft Diameter (mm)

8

Shaft Length (mm)

21
