NEEMA 23-JK57HS76-2804-1.89N m Stepper Motor – Round Type Shaft

1,430.00

Features :

  1. The input pulse decides the rotation angle of the motor.
  2. High accuracy of around 3 to 5% a step.
  3. It provides good starting, stopping, and reversing.
  4. Control of this motor is less costly because of the exclusion of complex control circuitry.
  5. The speed is proportional to the frequency of the input pulses.
SKU: OLENE0006 Categories: ,

Description

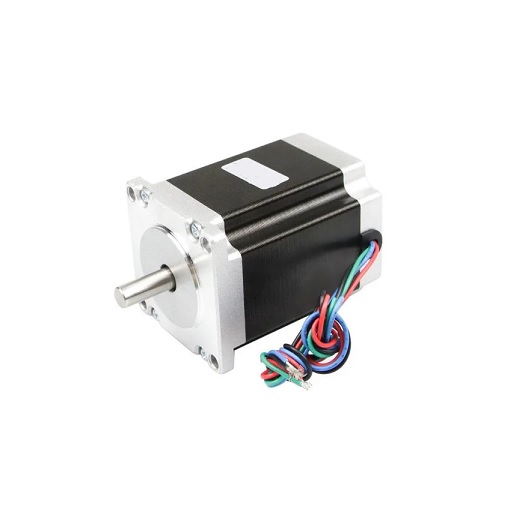

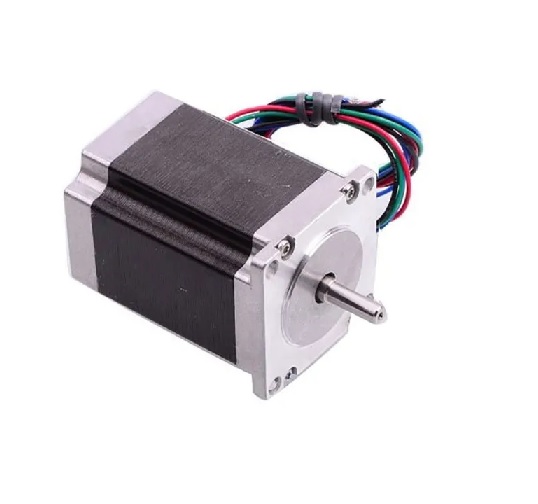

NEEMA 23 JK57HS76

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The Neema 23 JK57HS76 Stepper motor can provide 1.89N-m of torque at 1.68A current per phase.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Neema 23 JK57HS76 Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

They are very useful in various applications, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc.

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.



Additional information

Weight 1009 g
Dimensions 10 × 6 × 6 cm
Motor Type

Neema 23

Step Angle

1.8

Motor Body Length(mm)

76

Operating Current (A)

2.8

Resistance (Ω)

1.1

Inductance (mH/Phase)

3.6

Load Torque(N-CM)

1.89

No. of Leads

4

Detent Torque g.cm

600

Rotor Inertia (gm-cm2)

440

Shaft Type

Round

Shaft Diameter (mm)

6.35

Shaft Length (mm)

21
