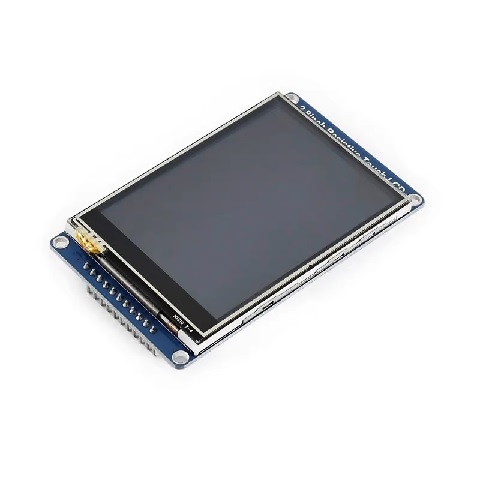

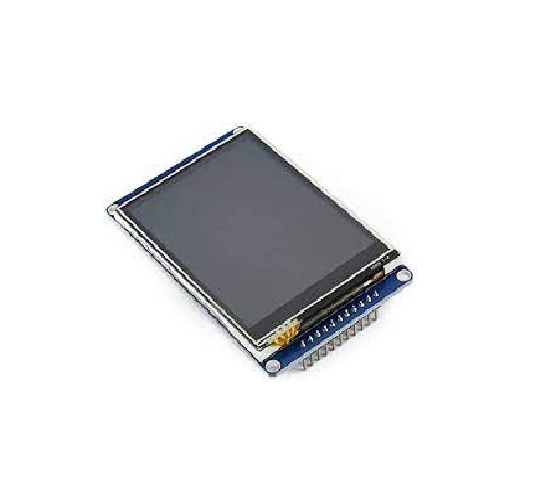

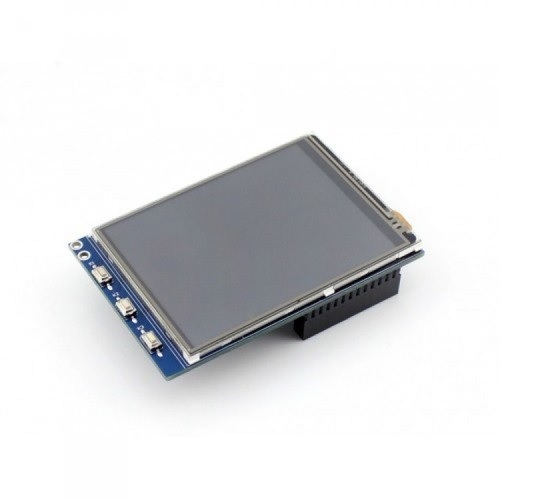

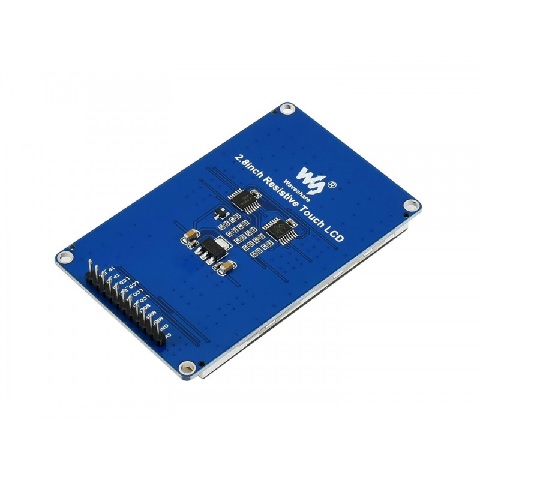

LCD touch display

This is a multicolor graphic IPS LCD display, 2.8inch diagonal, 320×240 pixels, with a resistive touch screen. This TFT lcd touch display is big (2.8″ diagonal) bright and colorful.

LCD touch display is 240×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display. It has an onboard touch controller for a smoother touch experience.

Features

  1. 320×240 resolution
  2. Resistive touch control
  3. Drivers provided (works with your own Raspbian/Ubuntu directly)
  4. 4 user keys
  5. High quality
Weight 30 g

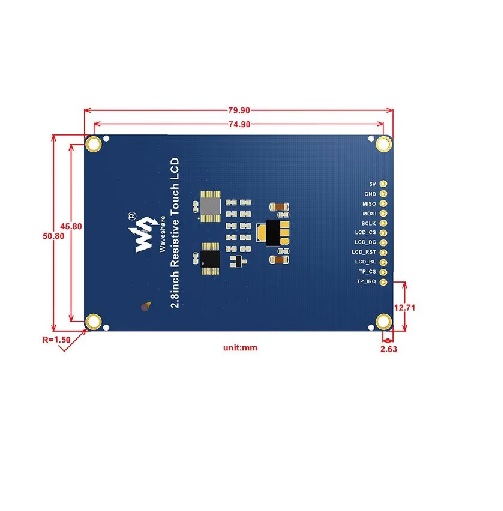

Dimensions 8.0 × 5.1 cm
Driver

HX8347D

Touch Controller

XPT2046

LCD Type

IPS

Communication Interface

SPI

Display Colors

RGB, 65K colors

Resolution

320 x 240

Backlight

LED

Display Size (mm)

57.6mm × 43.2mm

Touch Type

4-wire Resistive

Power Supply Voltage

5V

Logic Level

3.3V
