GT2 Close-Loop Rubber Timing Belt for 3D Printer

75.00

Features:

  • Type: Closed Loop
  • Length: 158 mm
  • Width: 6mm
  • Good quality and durable low noise
SKU: OLEB0006 Category:

Description

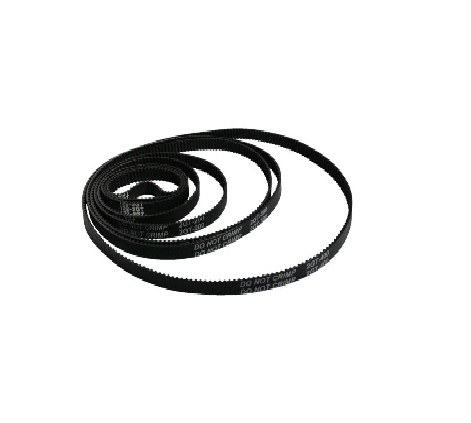

GT2 Close-Loop Rubber Timing Belt

This is GT2 Close-Loop 158mm Long & 6mm-Width Rubber Timing Belt for 3D Printer. The Power Grip GT2 system is an extension of the HTD system with greater load-carrying capacity.

HTD drive clearance, using small diameter pulleys, is approximately four times greater than an equivalent GT2 timing belt drive.

As smaller diameter pulleys are used, the clearance required to operate properly is increased. Circular arc tooth profile, tooth space is small, suitable for straight line driving.  GT2 Close-Loop Rubber Timing Belt is made as a flexible belt with teeth molded onto its inner surface.

Features:

  • Type: Closed Loop
  • Length: 158 mm
  • Width: 6mm
  • Good quality and durable low noise



Additional information

Weight 10 g
Dimensions 6 × 3 × 1 cm
Material

Neoprene Rubber With Fiberglass Core

Shape

Closed Loop

Total Length(mm)

158

Pitch (mm)

2

Width (mm)

6

Teeth Quantity

79

Tooth Height

0.76

Belt Height(mm)

1.52
