Force Sensor

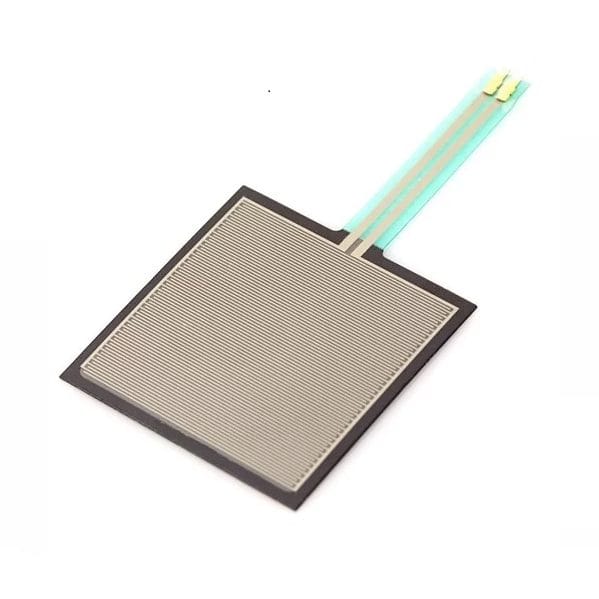

Force Sensor Square is a force sensitive resistor with a square, 1.75X1.5, Sensing area. This force sensor square 38.1mm will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1M. This FSR can sense applied force anywhere in the range of 100g-10kg. Two pins extend from the bottom of the sensor with 0.1 Pitch making it bread board friendly.



Weight 50 g
Dimensions 5 × 5 × 5 cm
Force sensitivity range:

10

Pressure sensitivity range:

150 psi

Stand-off resistance:

> 1mΩ

Device rise time:

1 – 2 msec

Life time:

> 10 million actuations
