Force Sensor – 0.5″ Force Sensitive Resistor


Easily customizable to a wide range of sizes.
Ultra-thin: 0.45 mm.
Robust: up to 10 million actuations.
Simple and easy to Integrate.

Testing and Measurement Equipment.
Embedded Electronics.
OEM Development Kit.
Consumer Electronics.

SKU: OLES00107 Category:


Force Sensor 0.5″

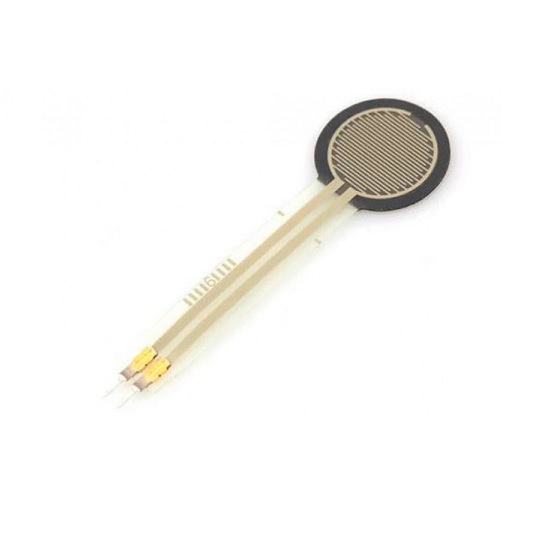

Get the high-quality Force pressure sensor 0.5-inch diameter at a low price. This is a force sensitive resistor with a round, 0.5 inch diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area.

The harder the force, the lower the resistance. When no pressure is been apply to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

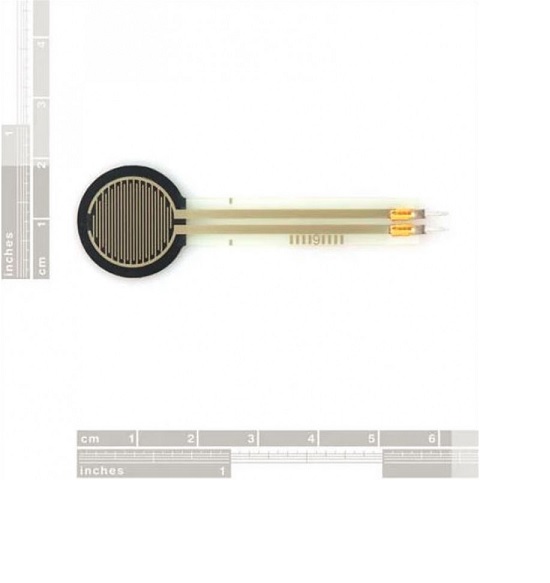

Two pins extend from the bottom of the sensor with 0.1 inch pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR. Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied.

These Force Sensor 0.5″ are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale.

This Force Sensor 0.5″ can easily interface with Microcontrollers, Arduino Boards, Raspberry Pi, etc. using an Analog to Digital Converter (ADC). so to get the best deal on this pressure sensor at affordable price buy now.
