BMP180 Barometric Pressure Altitude Sensor I2C/SPI Module
Specifications and Features :
- Get more precise temperature, atmospheric pressure values, and approximate altitude data
- Enhancement of GPS navigation (e.g. time-to first-fix improvement, dead-reckoning, slope detection)
- Indoor navigation (floor detection, elevator detection)
- Outdoor navigation, leisure and sports applications
- Weather forecast
- Health care applications (e.g. spirometry)
- Vertical velocity indication (e.g. rise/sink speed)
- Libraries and tutorials available for Arduino and other microcontrollers
- Operating Voltage: 1.71V to 3.6V – would typically be operated from 3.3V
- Operating Temperature: -40 to +85 deg. Celsius (full accuracy between 0 and +65 deg. C)
- Peak current: 1.12mA
- Operating Pressure: 300 hPa to 1100 hPa
- Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m

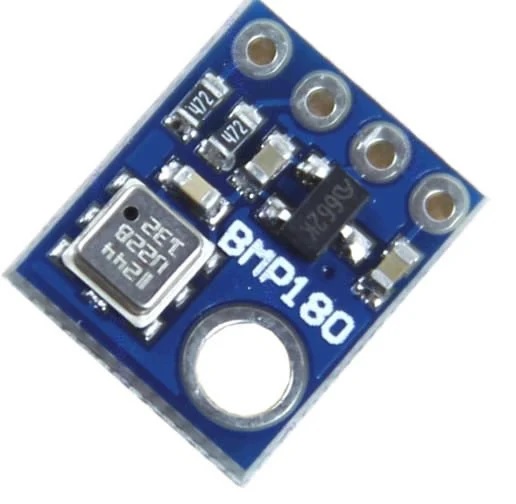

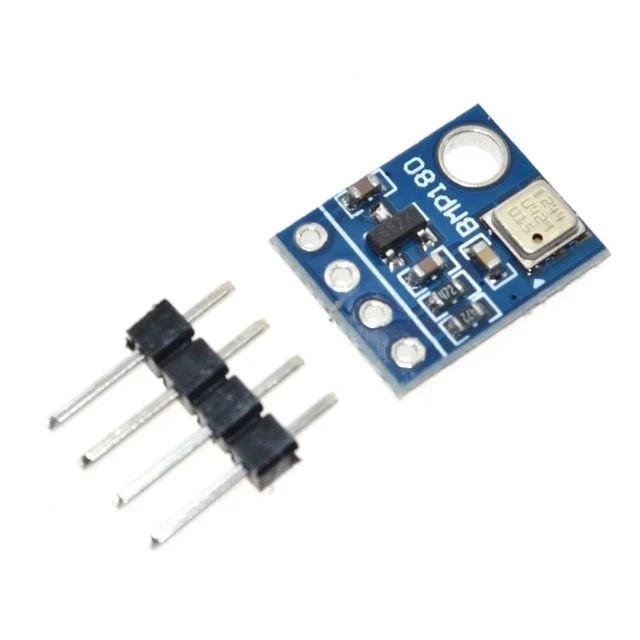

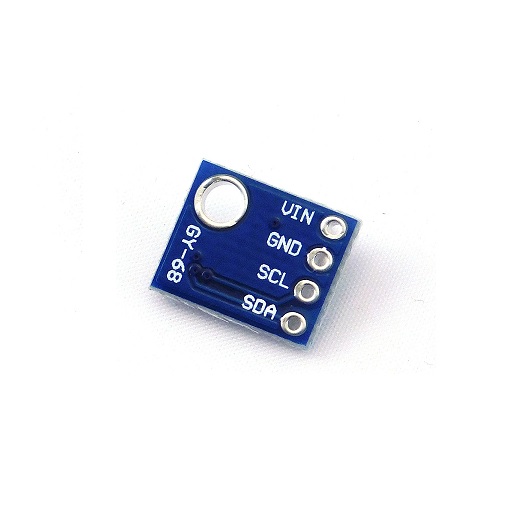

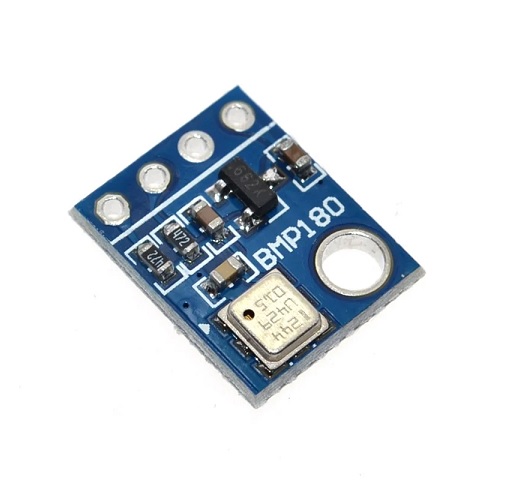

BMP180 Pressure Altitude Sensor
BMP180 Pressure Altitude Sensor I2C/SPI Module is a cheapest and tiny Atmospheric Sensor Breakout to measure barometric pressure, and temperature readings all without taking up too much space.
Basically, anything you need to know about atmospheric conditions you can find out from this tiny breakout. The BMP180 Breakout has been designed to be used in indoor/outdoor navigation, weather forecasting, home automation, and even personal health and wellness monitoring.
This BMP180 Pressure Altitude Sensor module uses an environmental sensor manufactured by Bosch with temperature, a barometric pressure sensor that is the next generation upgrade to the popular BMP085/BMP180/BMP183 Sensor. This Barometric Pressure Altitude Sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI.
This precision sensor from Bosch is the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude and the pressure measurements are so good; you can also use it as an altimeter with ±1 meter accuracy.
