E18-D80NK Adjustable Infrared Sensor Switch 3-80cm


  • Features :
    • Diffuse reflective type.
    • Digital output.
    • Adjustable detection distance.
    • Low consumption.
    • Compact size.
    • Range: 3 – 80cm adjustable
    • Power supply: 5V
    • Current: 100mA
    • Red: +5V; Yellow: Signal; Green: GND


GTIN: 8900000011445 SKU: ol-p-0000064 Category: Tags: , , ,

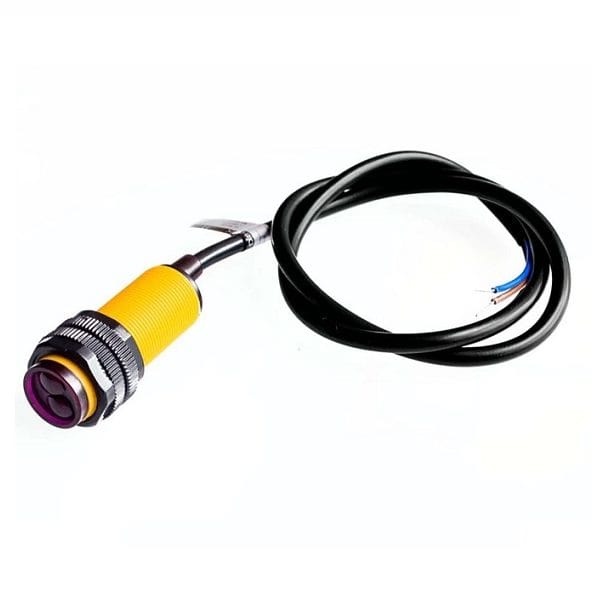

E18-D80NK Adjustable Infrared Sensor

E18-D80NK adjustable infrared sensor switch 3-80cm which is small and easy to use and inexpensive and easy to assemble and can be widely used in a robot to avoid obstacles and interactive media and industrial assembly lines and many other occasions.

The E18-D80NK Adjustable IR Sensor Proximity Switch 3-80cm Range is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand of the Sensor. It has a detection range of 3-80cm. The switching signal output differs in accordance with the obstacles.
