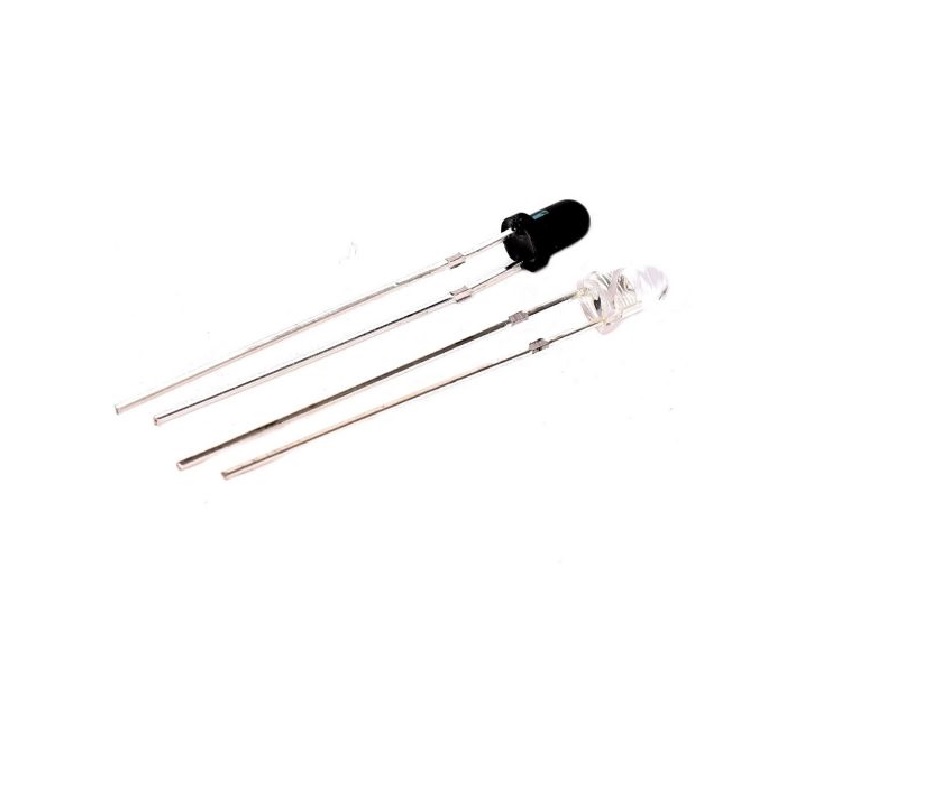

Infrared IR Transmitter and Receiver (Photo-diode) Pair

10.00

Features:

  • IR LED (TSFF5210)
    • Package type: leaded
    • Dimensions : 5mm
    • Leads with stand-off
    • Peak wavelength: λp = 870 nm
    • High reliability
    • High radiant power
    • High radiant intensity
    • Angle of half intensity:  = ± 10°
    • Low forward voltage
    • Suitable for high pulse current operation
    • High modulation bandwidth: fc = 24 MHz
    • Good spectral matching with Si photodetectors
  • IR Photodiode (BPV10NF)
    • Package type: leaded
    • Dimensions : 5mm
    • Leads with stand-off
    • Radiant sensitive area (in mm2): 0.78
    • High radiant sensitivity
    • Daylight blocking filter matched with 870 nm to 890 nm emitters
    • High bandwidth: > 100 MHz at VR = 12 V
    • Fast response times
    • Angle of half sensitivity: ± 20°
GTIN: 8900000011834 SKU: ol-p-0000074 Category: Tags: , ,

Description

 IR Transmitter and Receiver

IR Transmitter and Receiver (Photo-diode) Pair used generally for object detection. It can be used for line following, edge avoider and obstacle detection DIY robot.

IR LED emits light in infrared region, which is invisible to human eyes. It is a high-intensity diode packed in water clear plastic package. It makes a pair with IR photodiode.

The photodiode is a type of Diode but different from the LED. It does not emit any light but detects the presence of light. This diode allows some current to pass through it after detecting light and the amount of current flow is directly proportional to the amount of light detected, so it is called IR receiver and makes a pair with IR transmitter.

To know more about IR transmitter and receiver , click here. HOW IR WORKS ?

Additional information

Weight 20 g
Dimensions 3 × 2 × 1 cm
Dimensions :

5mm

Angle of half sensitivity:

± 20°

Angle of half intensity:

± 10°

High bandwidth:

> 100 MHz at VR = 12 V

Radiant sensitive area (in mm2):

0.78
