7812 Voltage Regulator IC


  1. Thermal Overload Protection
  2. Short-circuit Protection
  3. Output Transition SOA Protection
  4. 4% Output Voltage Tolerance
  5. Guaranteed in Extended Temperature Range
  6. Applications: Power Management
GTIN: 8900000012633 SKU: ol-p-0000125 Category:


 7812 IC

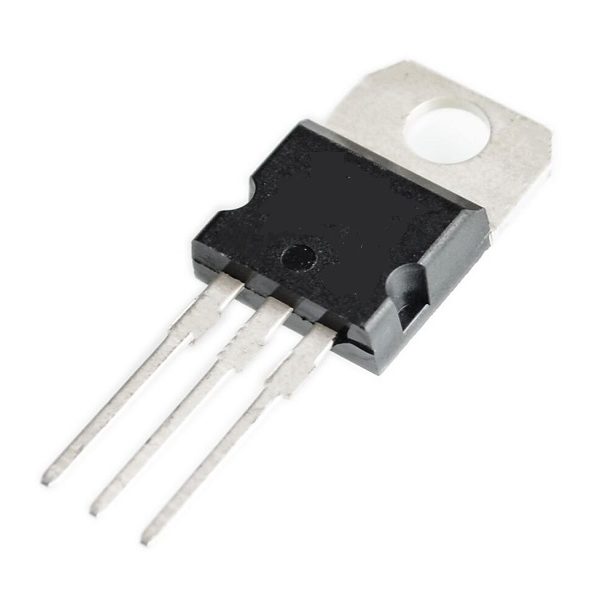

7812 IC is a fixed output, three terminal precision positive voltage regulator in 3 pins TO-220 package. The fixed voltage regulator is designed with thermal overload protection that shuts down the circuit when subjected to an excessive power overload condition, internal short circuit protection that limits maximum current the circuit will pass and output transistor safe area compensation that reduces the output short circuit as the voltage across the pass transistor is increased. If adequate heat sinking is provided then this positive voltage regulator can deliver over 0.5A output current.

you can read here for further details
