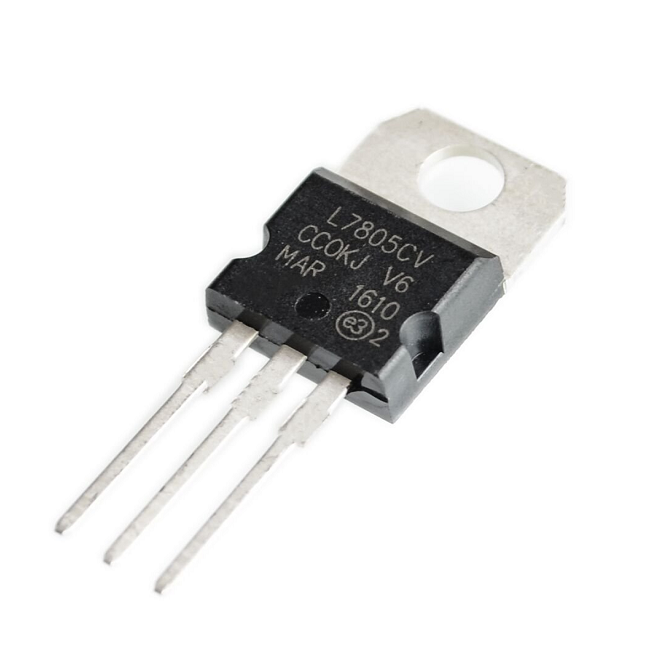

7805 Voltage Regulator IC


Fixed output voltage is 5V
Output current is 0.5A
Dropout voltage is 2V
Maximum DC input voltage is 35V
Output transition SOA protection
Output voltage tolerance is 4%
Operating temperature range 0C to 125C
Applications: Power Management.

GTIN: 8900000012619 SKU: ol-p-0000123 Category: Tags: , ,


7805 IC

7805 IC is a fixed output, three terminal precision positive voltage regulator in 3 pins TO-220 package.  The L78M05CV fixed voltage regulator is designed with thermal overload protection that shuts down the circuit when subjected to an excessive power overload condition, internal short circuit protection that limits maximum current the circuit will pass and output transistor safe area compensation that reduces the output short circuit as the voltage across the pass transistor is increased.

you can read about 7805 IC here!
