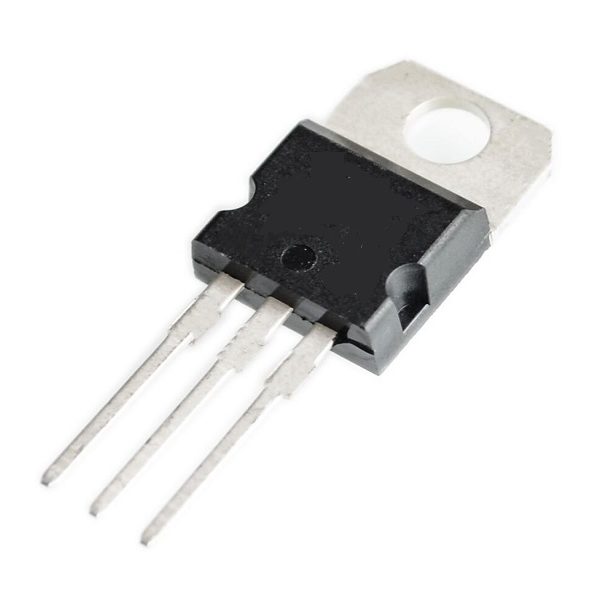

7809 Voltage Regulator IC


  1. Fixed output voltage is 9V
  2. Output current is 0.5A
  3. Dropout voltage is 2V
  4. Maximum DC input voltage is 35V
  5. Output transition SOA protection
  6. Output voltage tolerance is 4%
  7. Operating temperature range 0°C to 125°C
GTIN: 8900000012626 SKU: ol-p-0000124 Category: Tags: ,


 7809 IC

7809 IC is a fixed output, three terminal precision positive voltage regulator in 3 pins TO-220 package. The fixed voltage regulator is designed with thermal overload protection that shuts down the circuit when subjected to an excessive power overload condition, internal short circuit protection that limits maximum current the circuit will pass and output transistor safe area compensation that reduces the output short circuit as the voltage across the pass transistor is increased. If adequate heat sinking is provided then this positive voltage regulator can deliver over 0.5A output current.

you can read about 7809 IC here!
