XT60 Female Connectors-2pcs

40.00

 Features:

  1. Mechanical mounting for cable
  2. Electrical mounting soldered
  3. Contact plating Gold flash
  4. Spatial Orientation Straight
  5. Compatible for Wire size up to 12AWG

Out of stock

SKU: OLEC0001 Category:

Description

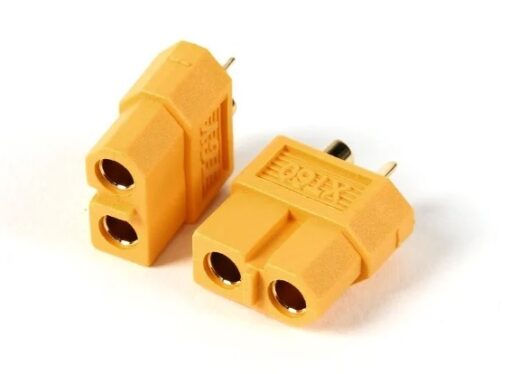

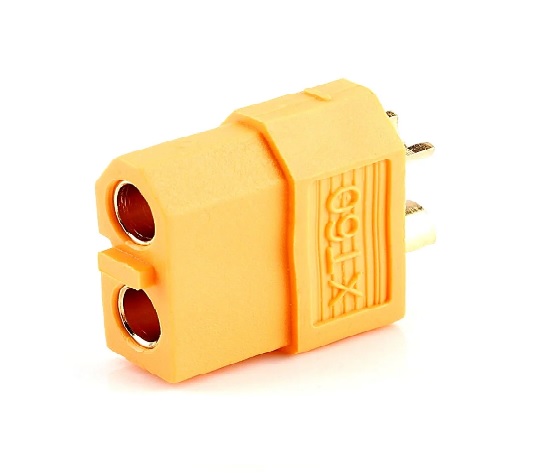

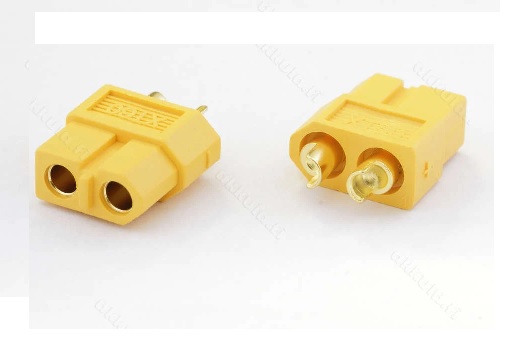

XT60 Female Connector

This female connector is an Excellent W.S. Deans T-connector replacements. Made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 65A constant. XT60, Designed by Amass to be more reliable and a better quality connection than Deans T-Connectors. There is no patent on the XT60 connector.

IMPORTANT
These are not cheap copy XT60 plugs. These original Nylon XT60 plugs can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60 plugs.

Additional information

Weight 2.4 g
Dimensions 6 × 6 × 3 cm
Connector Type

XT60H

Gender

Female

No. of Pins

2

Flammability Rating

UL94V-0

Contact Material

Brass

Body Material

polyamide

Color

Yellow

Rated Current(A)

60

Rated Operating Voltage (VDC)

500

Operating Temperature Range (°C)

-20 to 120
