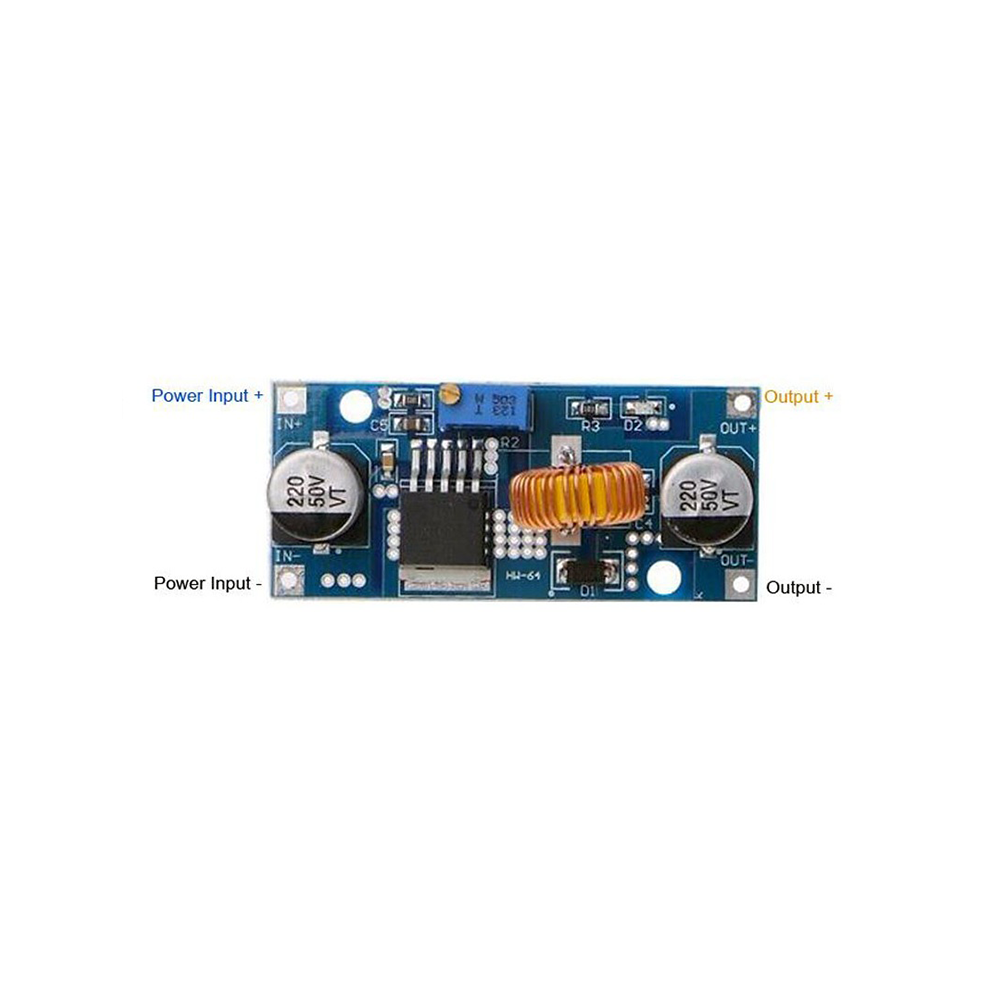

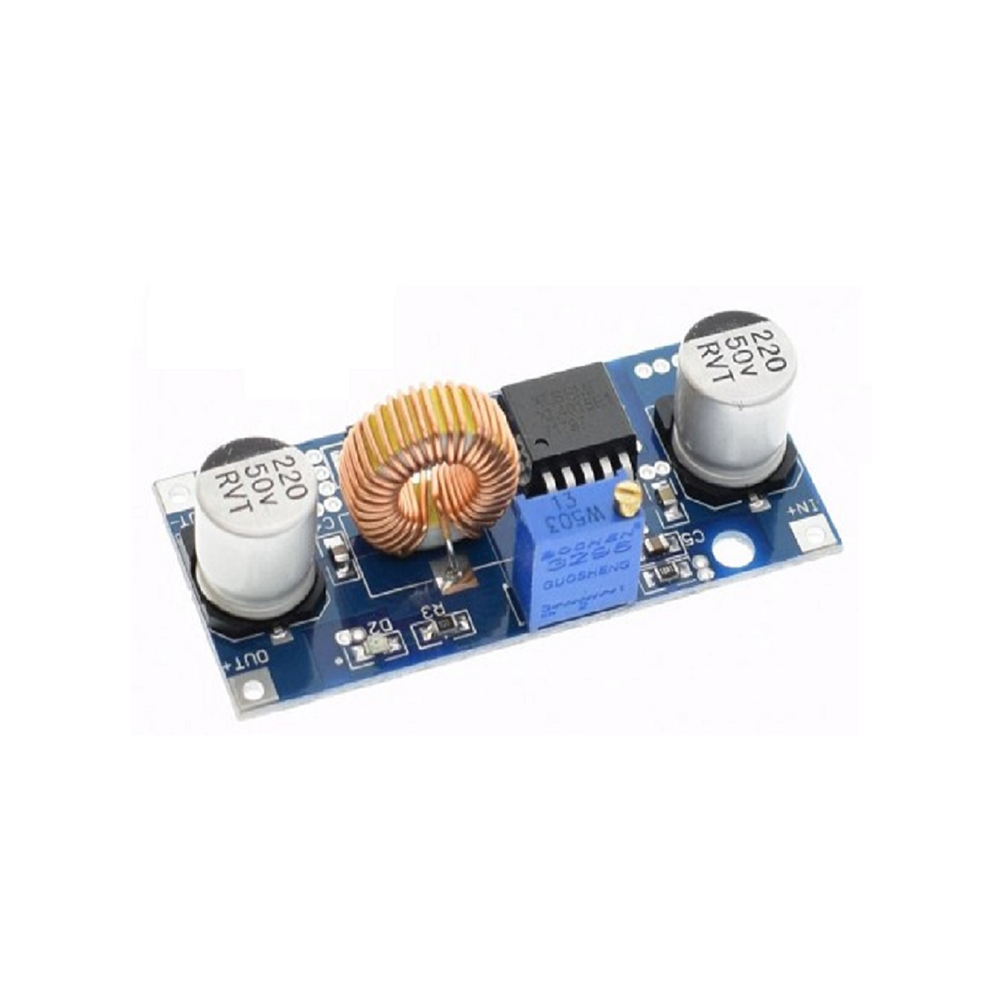

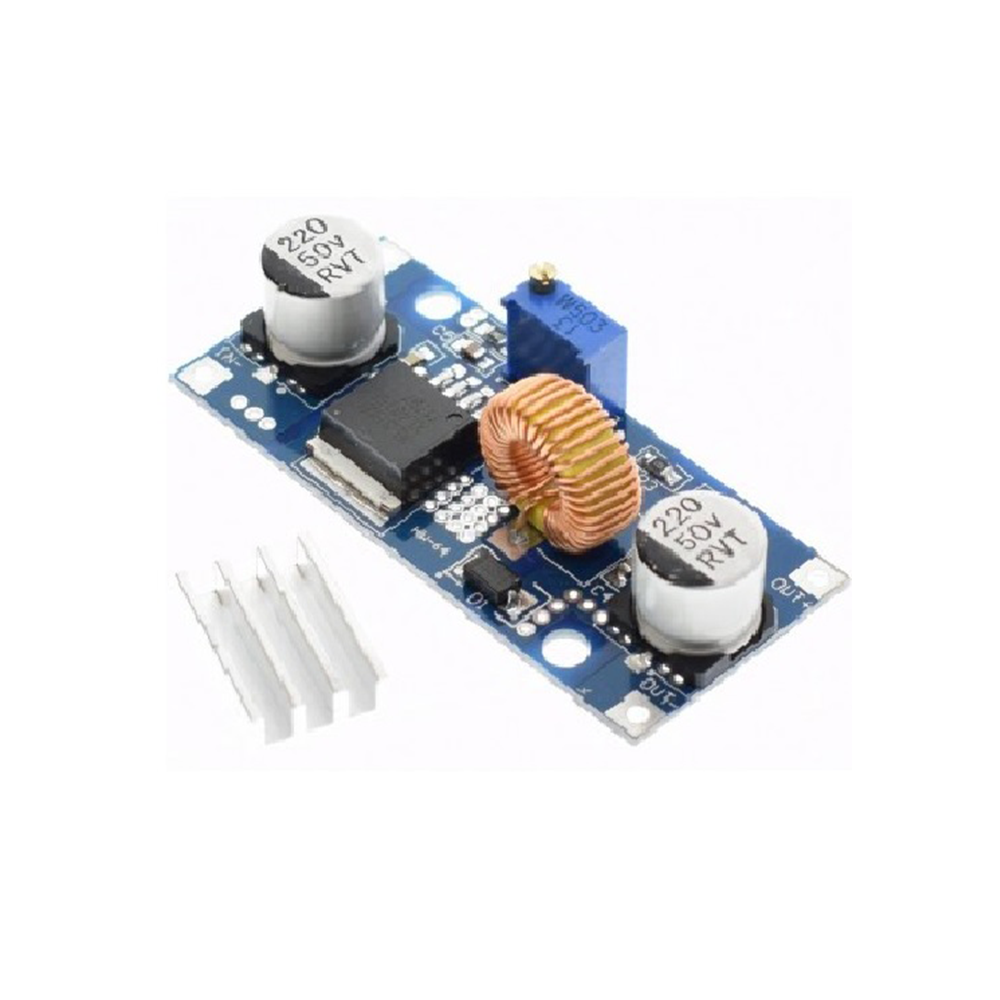

XL4015 module is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 0-5A (Max) Adjustable load with high efficiency, low ripple and excellent line and load regulation. Use as a step-down modules with overcurrent protection capabilities
This module has adjustable output Voltage and Current. Can also be used as a dedicated charger for Lithium Batteries (Li-Ion,LiPo) as it is capable of CC CV

Weight 20 g
Dimensions 6 × 2 × 1 cm
Input voltage range:

4~38VDC(Note:input voltage not exceeding 38V)

Output voltage range:

1.25-36VDC adjustable

Output current:

0-5A, recommended for use in 4.5A.

Operating frequency:

180KHz

Output power:

75W 5

Working temperature:

-40~+85 degrees
