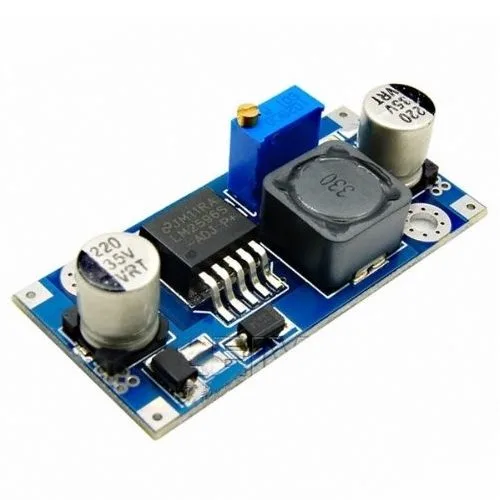

LM2596 DC-DC Power Supply

LM2596 DC-DC Power Supply Module is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. This works in only DC to Dc buck conversion. LM2596 DC-DC Step Down Buck Converter series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators .





Weight 50 g
Dimensions 5 × 4 × 2 cm
Input voltage

3-40V

Output current

Rated current is 2A, maximum 3A(Additional heatsink is required

Operating temperature Industrial grade

-40 to +85

Voltage Regulation

± 0.5%

Dynamic Response speed

5% 200uS
