Weighing Sensor

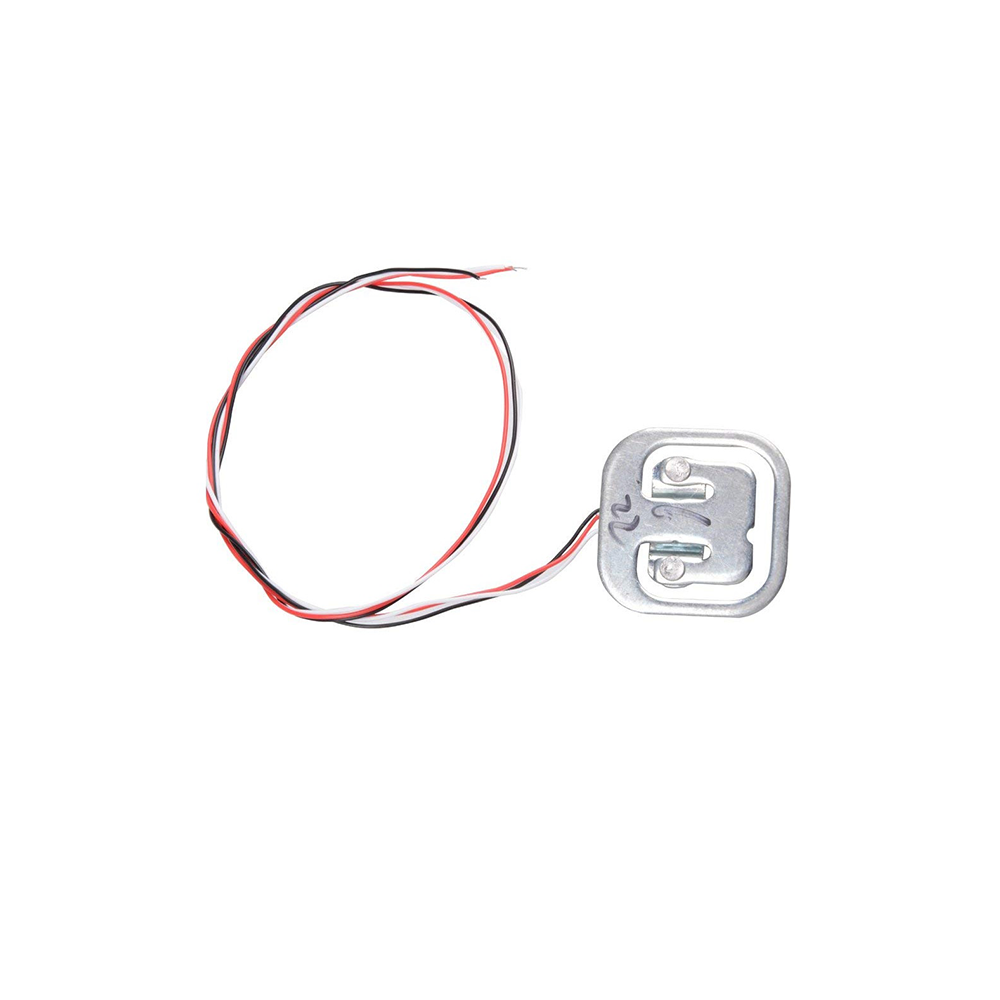

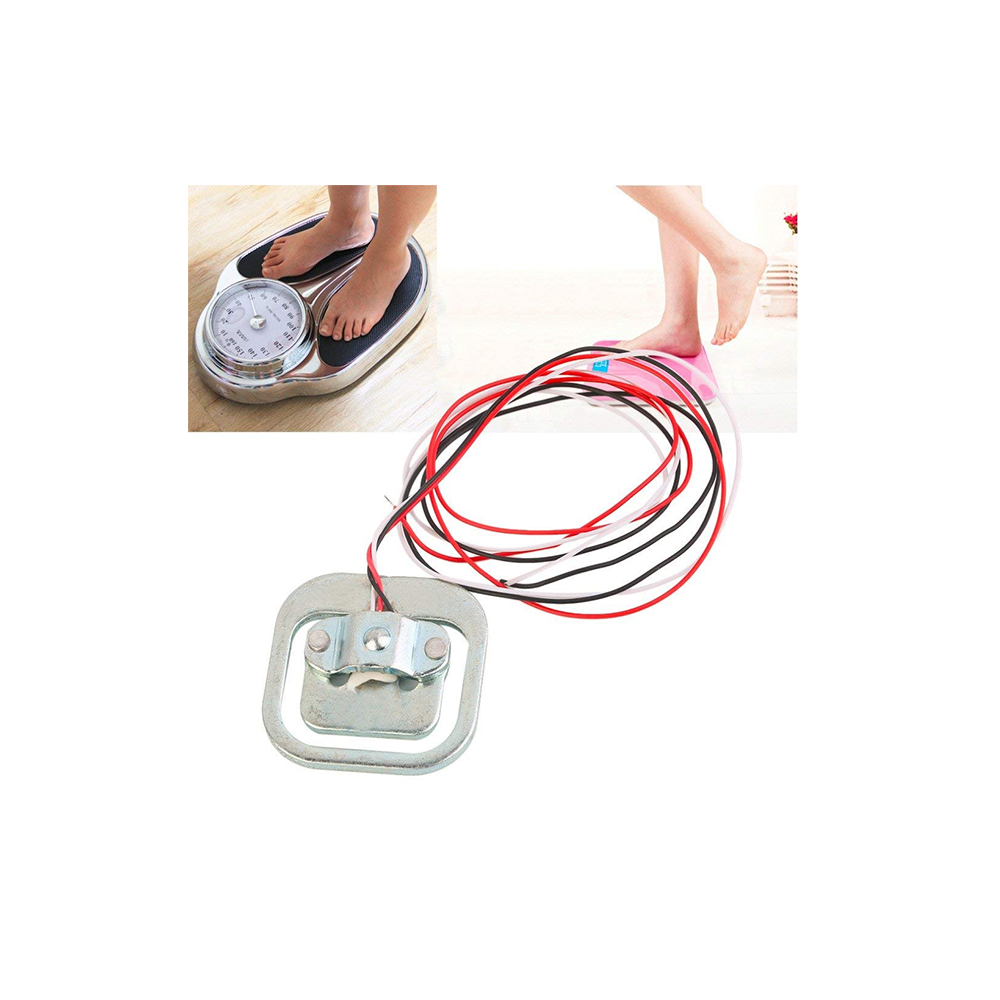

50Kg pressure micro scale weighing sensor resistance strain half bridge sensor body load cell. The sensor use the following three methods: 1. Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor. 2. The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg. 3. The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg. Size: 34mm x 34mm. Model: weighing sensor strain of half-bridge sensor.

Weight 150 g
Dimensions 3 × 3 × 3 cm
LOAD CELL SPECS -

34 mm x 34 mm

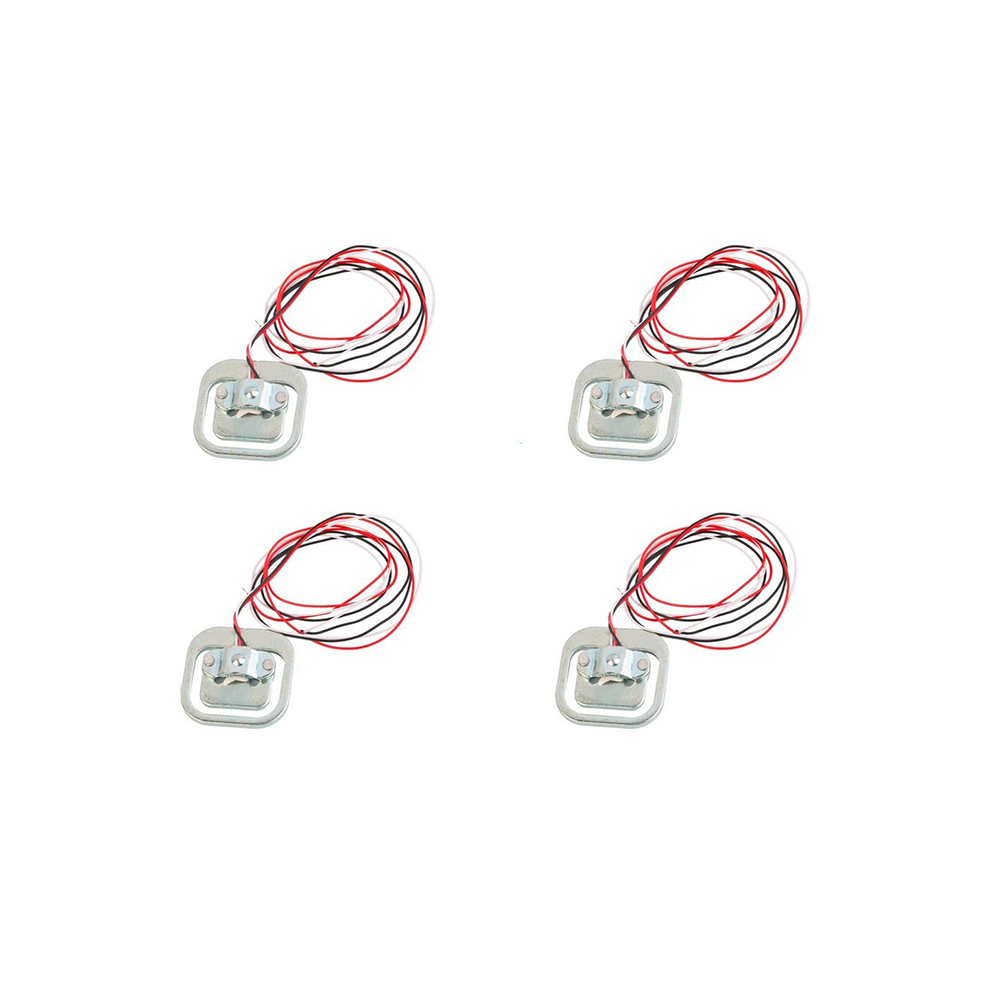

Package- human scale load cell sensor

4

sum of the ranges of the four sensors:

50kgx4=200kg
