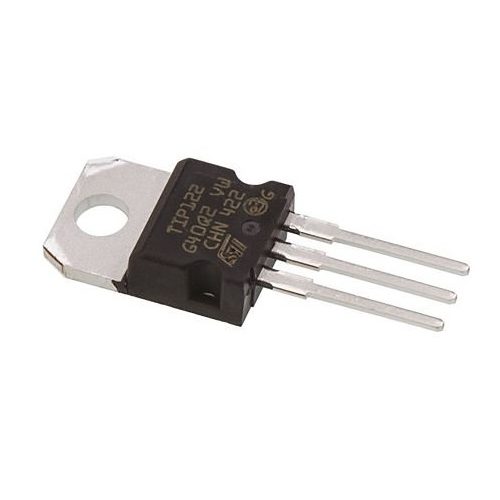

TIP122 Transistor

Power NPN Darlington Transistor which is designed for general purpose amplifier and low speed switching applications. It can generally drive high voltage DC Loads.

click here to know more!

About TIP122 Transistor

The TIP122 is a Darlington pair NPN transistor. It functions like a normal NPN transistor, but since it has a Darlington pair inside it has a good collector current rating of about 5A and a gain of about 1000. It can also withstand about 100V across its collector- Emitter hence can be used to drive heavy loads.

Applications

  • Can be used to switch high current (upto 5A) loads
  • Can be used as medium Power switches
  • Used where high amplification is needed
  • Speed control of Motors
  • Inverter and other rectifier circuits
Weight 10 g
Dimensions 1 × 4 × 1 cm
Collector-Base Voltage (Vcb) (V)

50

Collector Current (DC) (A)

100m

Storage condition (℃)

-65 to 150

Junction Temperature (°C)

150
