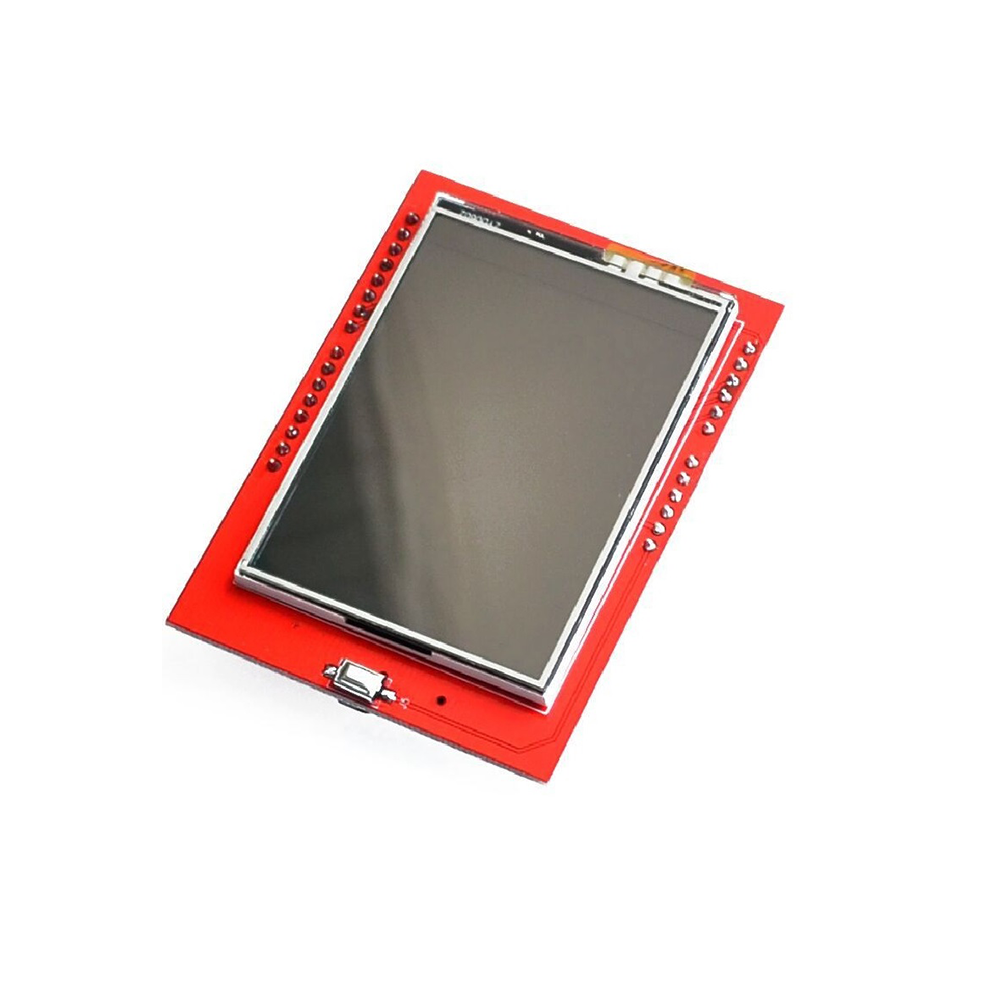

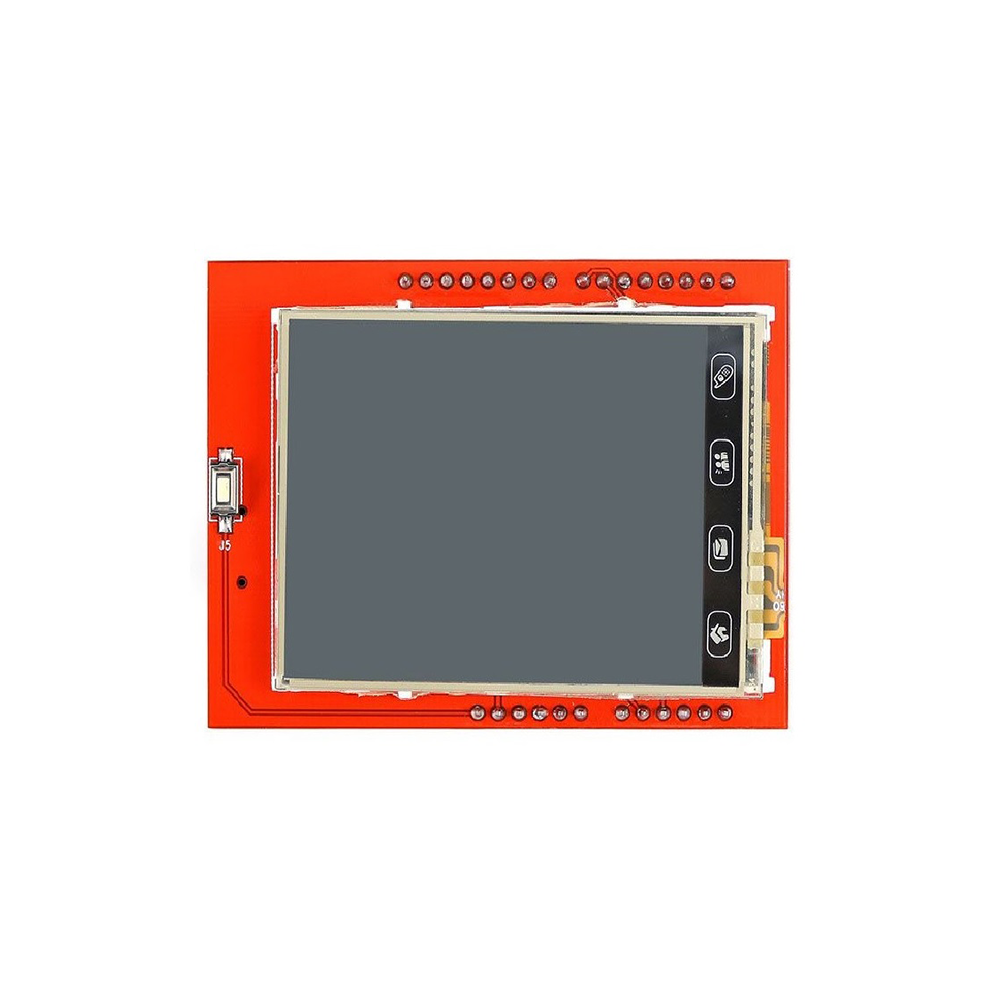

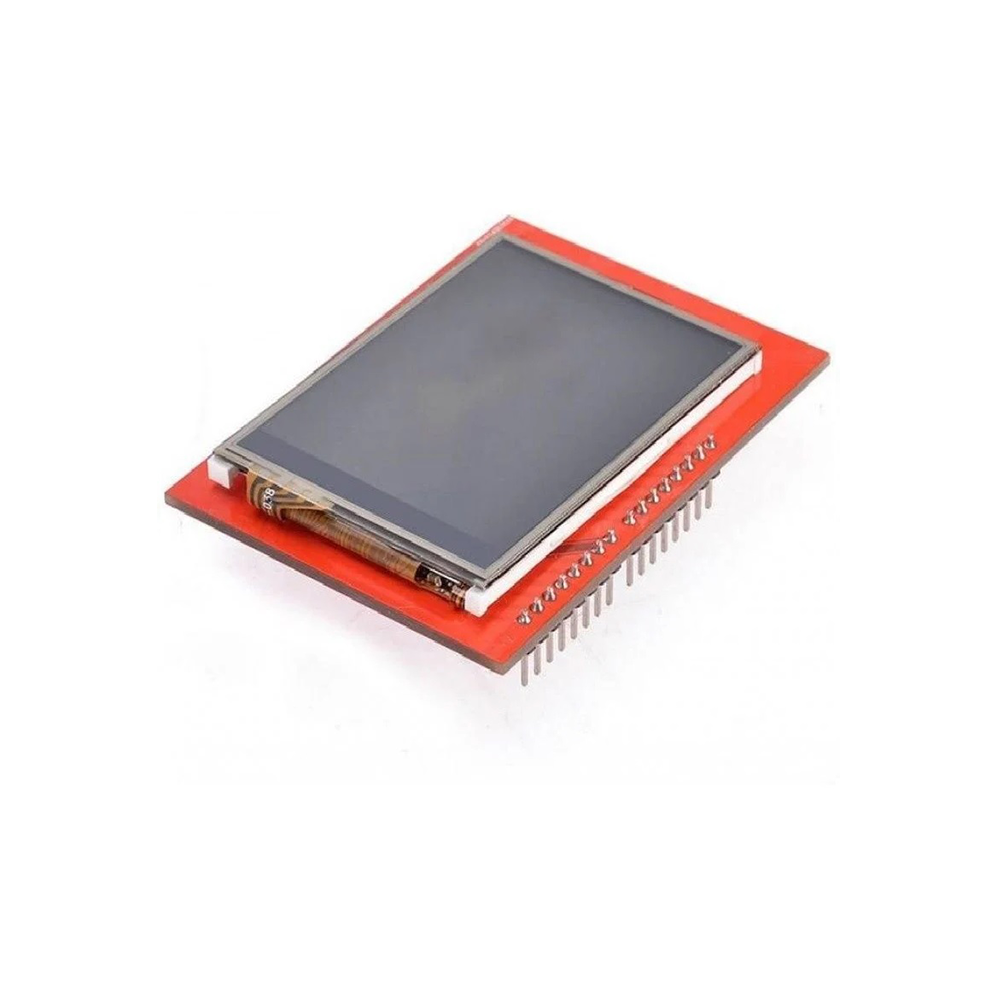

2.4″ Inch Touch Screen TFT Display Shield

500.00

  1. 2.4″ Touch LCD TFT display module for Arduino
  2. 240*320 pixels resolution
  3. Ability to display 262000 different colors
  4. The shield comes equipped with a microSD card slot.
  5. SPFD5408 controller with built-in video RAM buffer
GTIN: 8900000037216 SKU: OLA99917 Category:

Description

TFT Display Shield

2.4″ Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright and colorful! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.


Features:

  1. 2.4″ diagonal Touch LCD TFT display
  2. 240×320 resolution, 18-bit (262,000) color
  3. 8-bit digital interface, plus 4 control lines
  4. 5V compatible! Use with 3.3V or 5V logic
  5. Onboard 3.3V 300mA LDO regulator
  6. Works with any Arduino Uno and mega compatible boards

Additional information

Weight 100 g
Dimensions 7 × 2 × 1 cm
Resolution

240×320 pixels

supply voltage

5V

Working temperature

-30°C ~ 70°C

Compatible boards

Arduino UNO and Mega
