Color sensor recognition module
- Operating Voltage: 3V-5V
- High-resolution conversion of light intensity to frequency.
- Chip pins all has drawn for standard 100.
- Put the needle (2.54 mm).
- Mil-convenient for bitmap board.
- Programmable color and full-scale output frequency.
- Communicate directly with a microcontroller.
- Low-profile surface mount package.

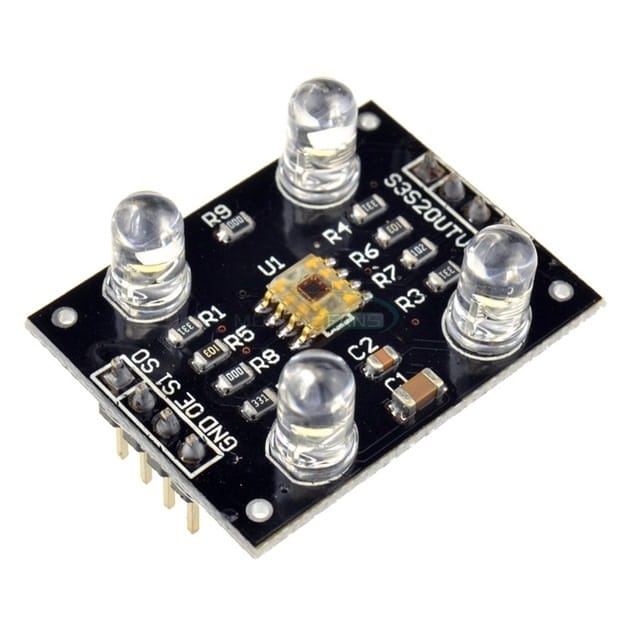

TCS3200 Color sensor
TCS3200 Color sensor recognition module are developed based on diffuse technology that can detect a wide range of colors. The combination of color sensitive filters and sensors array perform color sensing, which is further used to analyze the color present in an image or in a specified object. The color measurement process involves a light source to illuminate the surface, the target surface, and a receiver that measures the reflected wavelengths.
