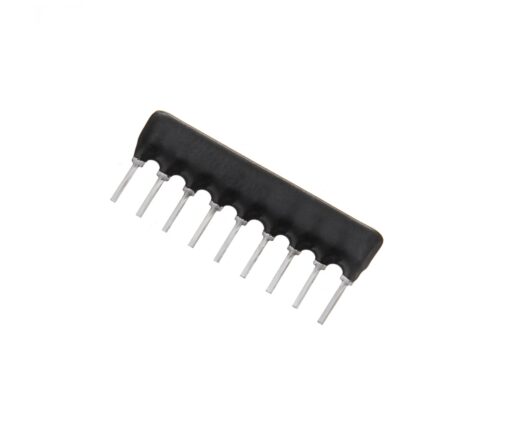

RESISTOR ARRAY

  • Resistance Tolerance : Standard : ±2% or 0.5Ω
  • Resistance Range : Standard : 10Ω to 1 MegΩ
  • Operating Temperature Range : -55°C to 125°C 100
  • Dielectric Strength : 100 VAC
  • Maximum Operating Voltage : 100V not to exceed rated power
  • Terminal strength : Tensile : 1Kg, 30 seconds, Bending : 500g, 2 Times
  • Load life : 70°C at Rated Voltage for 1,000 hrs
  • Temperature Coefficient : Standard : 100Ω to 1 MegΩ, 100PPM / °C typical, 22Ω to 99Ω, ±200PPM / °C typical
Weight 10 g
Dimensions 2 × 2 × 1 cm
Dielectric Strength :

100 VAC

Resistance (Ω)

10k

Temperature Co-efficient

±200ppm/℃
