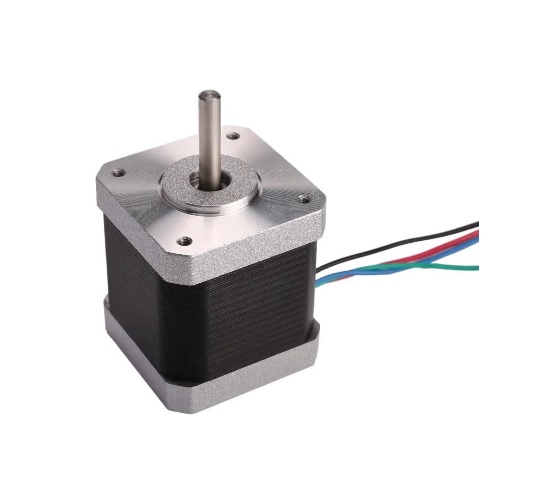

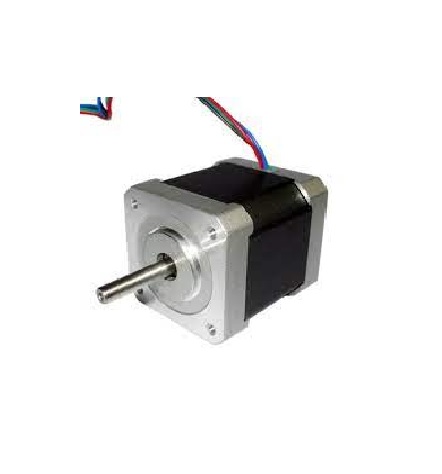

NEEMA 17

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The Neema 17 0.15N-m Stepper motor can provide 0.15N-m of torque at 0.4A current per phase.

The motor’s position can be commanded to move or hold in one position with the help of Stepper Motor Drivers. The Neema17 0.15N-m Stepper motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver

It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.



Weight 227 g
Dimensions 6 × 5 × 4 cm
Motor Type

Neema 17

Step Angle

1.8

Motor Body Length(mm)

34

Operating Current (A)

0.4

Resistance (Ω)

24

Inductance (mH/Phase)

15

Load Torque(N-CM)

0.16

No. of Leads

6

Detent Torque g.cm

120

Rotor Inertia (gm-cm2)

34

Shaft Type

round

Shaft Diameter (mm)

5

Shaft Length (mm)

20
