5MM IR TRANSMITTER AND RECEIVER LED TX RX PAIR PHOTODIODE

Name: IR TRANSMITTER AND RECEIVER LED 5mm best quality
SKU: OLA66667
Price: 99.00 INR
Availability: InStock

₹116.82

R TX RX size: 5mm diameter package
IR LED current rating: 30mA nominal, 600mA pulse loading at 1% duty cycle
IR LED wavelength: 940nM
Photodiode peak response wavelength: 940nM”

SKU: OLA66667

Category: Uncategorized

Tags: IR Receiver, IR Transmitter, RX, TX

IR TRANSMITTER AND RECEIVER LED

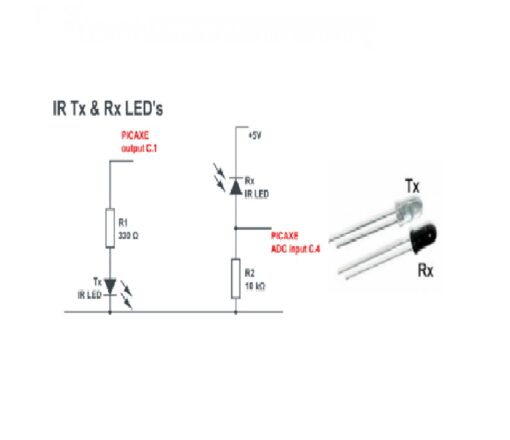

The IR Transmitter and Receiver pair matched pair used in our IR proximity, White Line or Micromouse sensor. It consists of 5mm 940 nanometer wave length high power IR LED and photodiode having peak sensitivity at 940 nanometer wavelength.

Weight	10 g
Dimensions	3 × 1 × 1 cm
IR TX RX size:	5mm diameter package
IR LED current rating:	30mA nominal, 600mA pulse loading at 1% duty cycle
IR LED wavelength:	940nM
