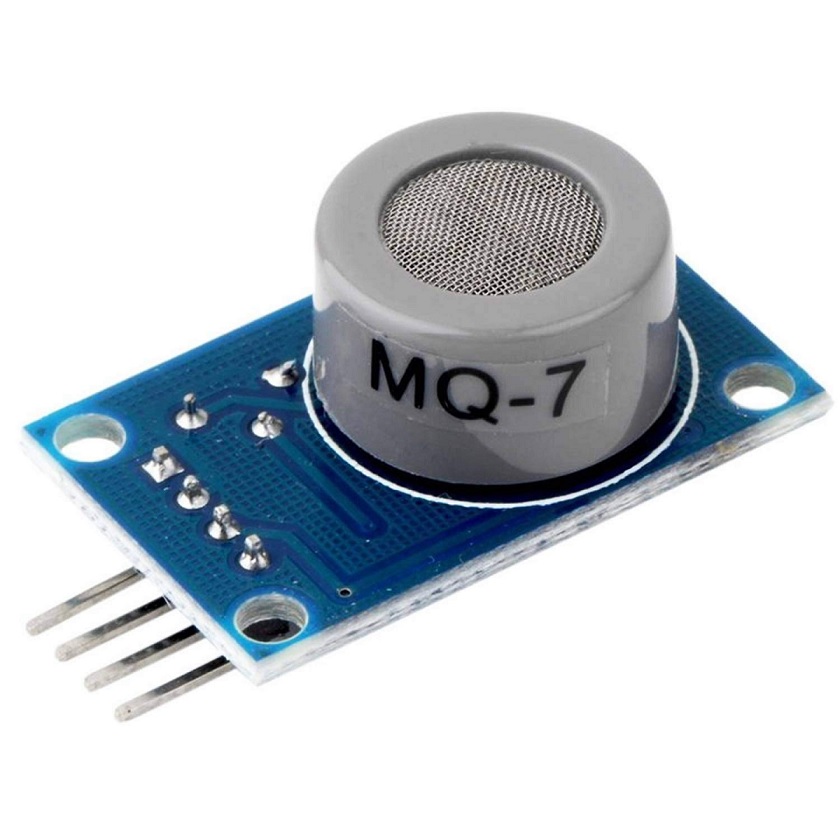

MQ7 sensor

MQ7  sensor module is highly useful for carbon monoxide(CO) gas detection at home, car or industry. The sensor module can detect carbon monoxide(CO). It is highly sensitive and responding time is very fast. Depending on the requirements of sensitivity, the sensor can be adjusted with a Potentiometer.

MQ7 sensor is a highly sensitive analogue output sensor which is commonly used as carbon monoxide(CO) gas sensor in MQ sensor series. It is a very popular Gas Sensor in various sectors. The output voltage of the gas sensor increases if the concentration of gas increases. The sensitivity of the sensor is adjustable by the Potentiometer. The MQ7 who is Arduino compatible.

The working voltage of MQ7  sensor is 5 volt DC and it draws around 350mW. This sensor is capable of detecting carbon monoxide(CO) gas concentrations anywhere from 20ppm  2000ppm.

Weight 50 g
Dimensions 3 × 1 × 2 cm
Operating voltage (v)

DC 5


10 ~ 1000 ppm

Characteristic gas

100 ppm CO

Heating resistance

± 31 Ω

Heating voltage

5.0V ± 2V / 1.5 ± 1V

Ambient temperature (°C)

-20 ~ + 50
