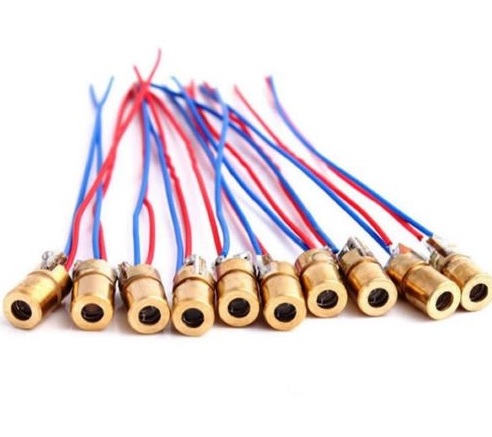

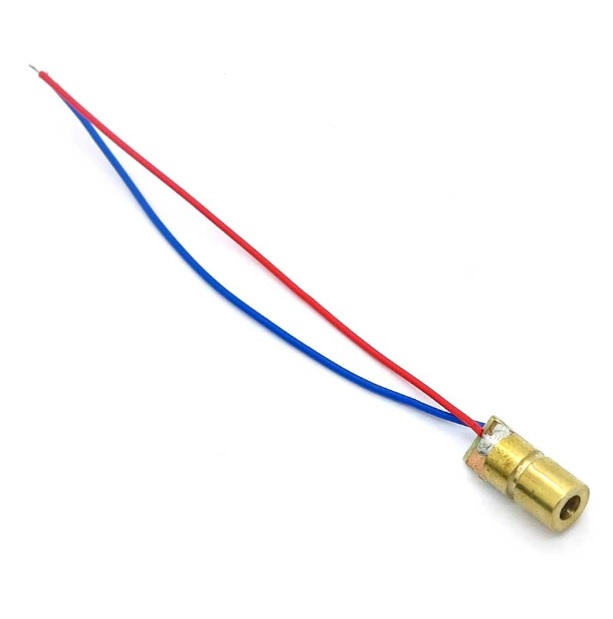

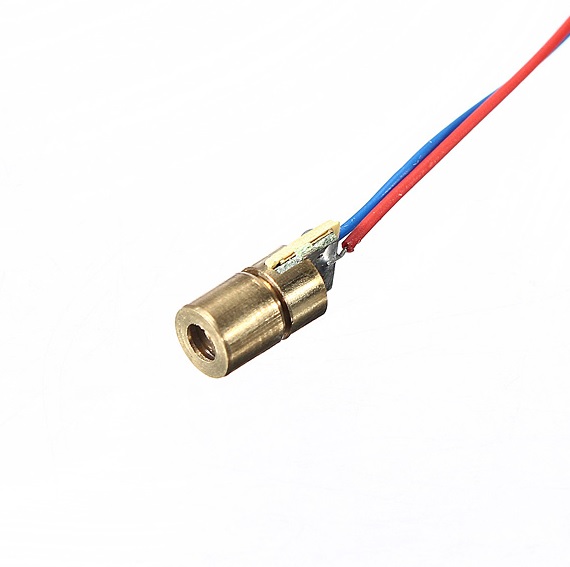

650nm 6mm 5V DC 5mW Mini Laser Dot Diode Module
₹9.50 (excl. GST)
- Output Power: 5mW
- Working Voltage: 5V DC
- Working temperature: -10 ℃~＋40 ℃
- Housing material: Copper
- Working life: more than 2000 hours
- Spot mode: Dot Facula (continuous output)
- Laser wavelength: 650nm red-colored.
- Operating current: <40mA
- Power lead length: 120mm.
Description
Laser Diode
650nm 6mm 5V DC 5mW Mini Laser Dot Diode Module which is made of copper plastic. It is suitable for 3V 5mW standard, with 6mm outside diameter, can be used to connect diode tubes for multiple uses.
Package Includes :
1 x 650nm 6mm 5V DC 5mW Mini Laser Dot Diode Module
Specification
Additional information
| Item Type: | Laser Module |
|---|---|
| Voltage Rating (V): | 5 |
| Operating Temperature (°C): | -10 to 50 |
| Rated Power (mW) | 5mW |
| Wavelength (nm) | 650 |
| Working Current (mA) | <40mA |
| Working Lifespan(h) | more than 2000 hours |
| Cable Length (cm): | 7 |
