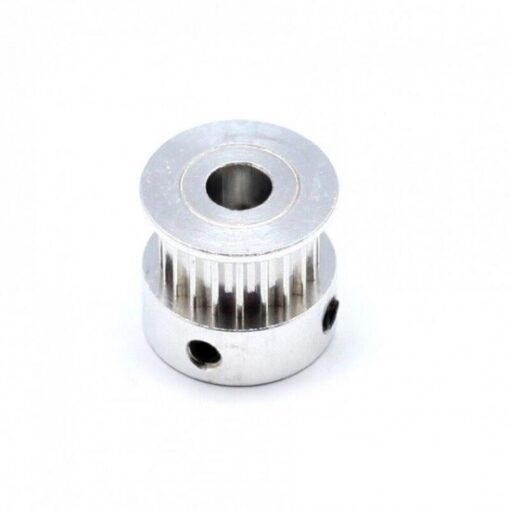

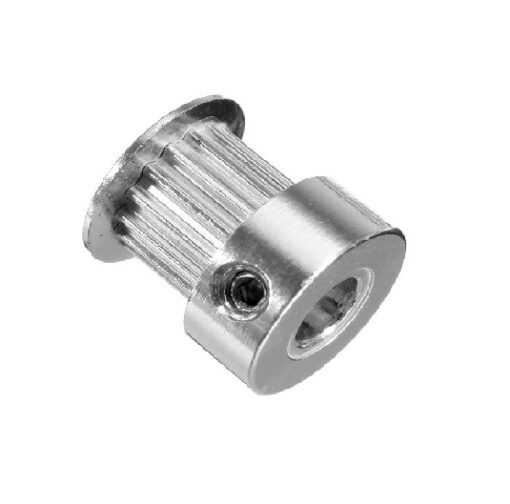

GT2 20 Tooth Timing Pulley

This is Aluminum GT2 20 tooth timing pulley 6.35mm Bore For 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only – MXL belts will slip due to the different tooth profiles.

This pulley has 20 teeth and a 6.35mm inner bore. Two set screws can be used to attach it firmly to any 5mm diameter shaft. Full aluminum construction means these are very light and very durable.

Note: As this Pulley has two grub fitting, it comes with + 0.4 to 0.7 mm tolerance for the differential motor shaft. It will loose fit the 5 mm shaft without grub fitting. Please note before buying.

Weight 6 g
Dimensions 3 × 3 × 1 cm
Teeth

20

Inner Diameter (ID) (mm)

6.35mm

Outer Diameter (OD)(mm)

16mm

Material

Aluminium

Compatible With

M4x4
