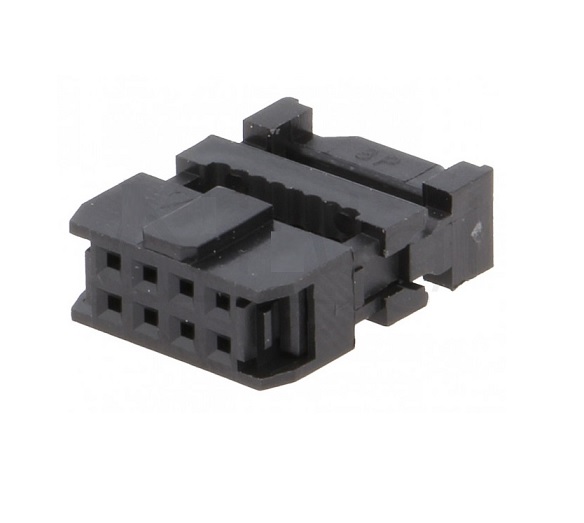

FRC connector Female 8 pin (Pack of 2)


  • Features/Specs:

    • Gender: Female
    • Connector Type: IDC
    • Current Rating: 2A
    • Mounting Type: Cable Mount
    • Number Of Contacts: 8
    • Number Of Rows: 2
    • Pitch: 2.54mm
    • Contact Material: Phosphor Bronze
    • Minimum Operating Temperature: -65°C
    • Maximum Operating Temperature: +105°C
    • Housing Material: Thermoplastic
    • Contact Plating: Nickel-plated terminals
    • Color: Black
SKU: OLEC00143 Category:


FRC connector female 8 pin

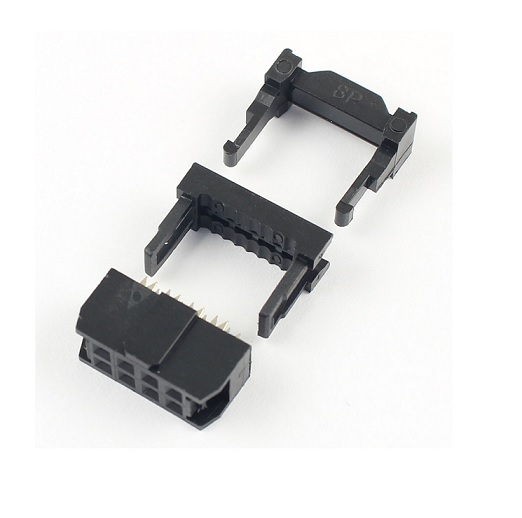

FRC connector Female 8 pin – 2.54mm (FRC Connector) This is a 8 pin dual row IDC female socket connector with a central lug and strain-relief socket very suitable for the ribbon cable. These IDC sockets mate to standard 0.1″ PCB Header pins or male IDC plugs.

It is very easy to assemble IDC Termination for the standard ribbon cable. There are 2 rows of 4 pins each, hence 4×2 pins. The pitch of the connector is 2.54 mm.

8 Pin Straight Female IDC Socket Connector – 2.54mm (FRC Connector), 2.54mm DC3 8 Pin Straight Male IDC Socket, is an IDC socket connector used to make physical connections in a variety of applications.

They are common in industrial applications, where the accuracy of connections, the ability to make them reliable, and where there may be many wires that need to be connected at once are all vital considerations.

This Product is Known as 2.54mm, 8 pin FRC Connector, Connector, 8 Pin Female Connector, 8Pin FRC connector, 8Pin idc, 8Pin Female IDC Connector, 8Pin IDC Female Connector, 8Pin Ribbon Cable Connector, 8Pin IDC Female Connector, 8 Pin IDC Female Connector.
