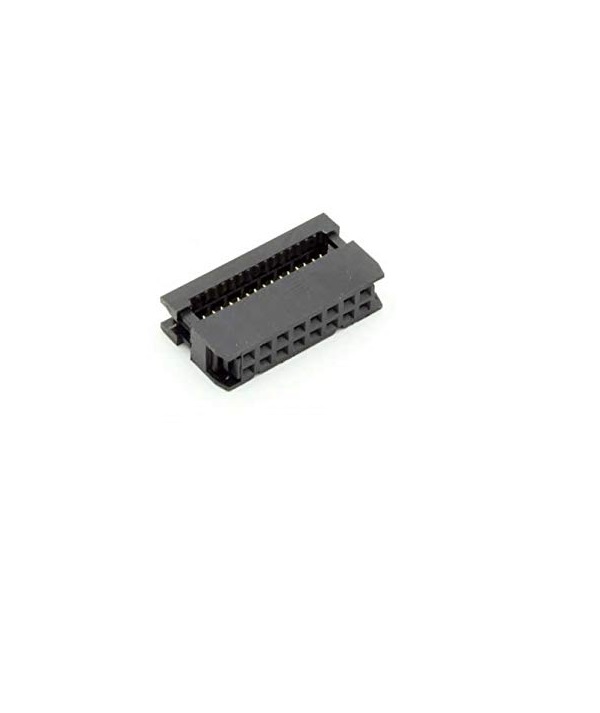

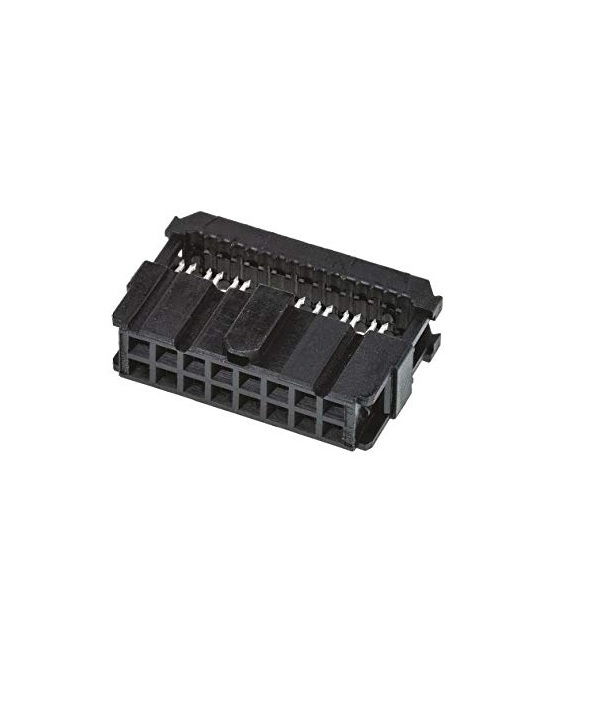

FRC connector Female 16 pin (Pack of 2)


  • Gender: Female; Connector Type: IDC; Current Rating: 2A
  • Mounting Type: Cable Mount; Number Of Contacts: 16; Number Of Rows: 2; Pitch: 2.54mm
  • Contact Material: Phosphor Bronze; Housing Material: Thermoplastic
  • Contact Plating: Nickel-plated terminals; Color: Black
  • Minimum Operating Temperature: -65°C; Maximum Operating Temperature: +105°C
SKU: OLEC00140 Category:


FRC connector female 16 pin

FRC connector Female 16 pin – 2.54mm (FRC Connector) This is a 16 pin dual row IDC female socket connector with a central lug and strain-relief socket very suitable for the ribbon cable. These IDC sockets mate to standard 0.1″ PCB Header pins or male IDC plugs.

It is very easy to assemble IDC Termination for the standard ribbon cable. There are 2 rows of 8 pins each, hence 8×2 pins. The pitch of the connector is 2.54 mm.
