PowerMax Dual Channel Brushed ESC Motor Controller with EBD – 20A

2,700.00

  • PowerMax Series Brushed Motor Controllers are dual channel motor controllers capable of driving 2 brushed DC motors.
  • Signal-loss failsafe
  • Synchronous rectification,
  • Rregenerative braking, and an
  • Isolated heat sink plate.
  • The Powermax series can be used with any standard RC signals.
  • Best option for Robowar Use.

Out of stock

Description

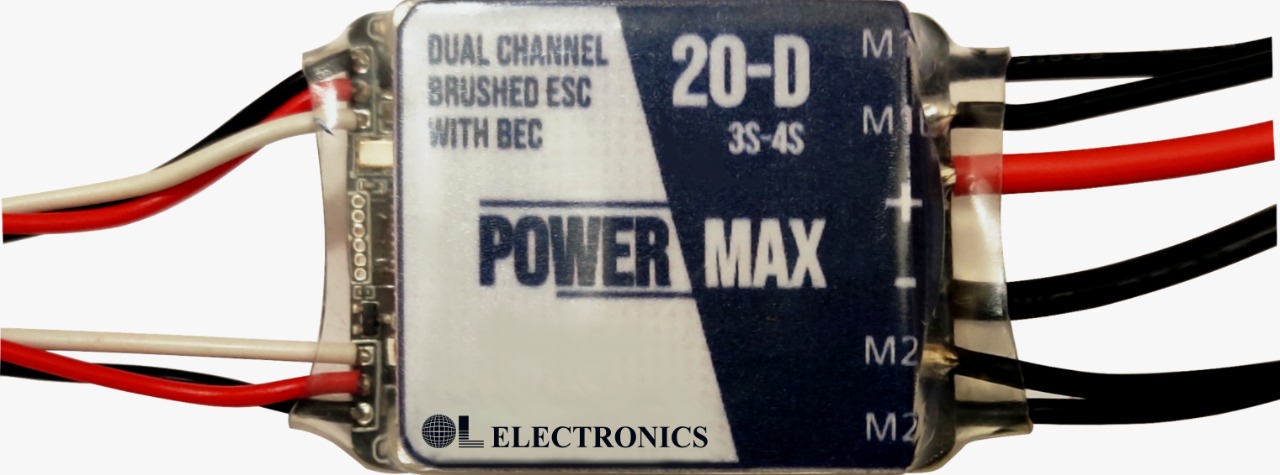

Dual Channel Brushed ESC

PowerMax Series dual channel Brushed ESC Motor Controllers are capable of driving 2 brushed DC motors. Features include signal-loss failsafes, synchronous rectification, regenerative braking, and an isolated heat sink plate. The Powermax series can be used with any standard RC signals.

PowerMax 20-D is perfectly suited to drive the Motor with Orbit500 Gearbox.

Technical Specifications

  • Voltage Input Range:  11 – 17 V (3S – 4S Li-Po)
  • Continuous Current :20A per channel
  • Maximum Current Up to 50A per channel, 10 sec.
  • Dimensions: 55mm x 40mm x 15mm (lxbxh) (not including wires)
  • Weight Approx. 50 gms
  • Inputs: R/C Servo
  • BEC 5V@100mA max

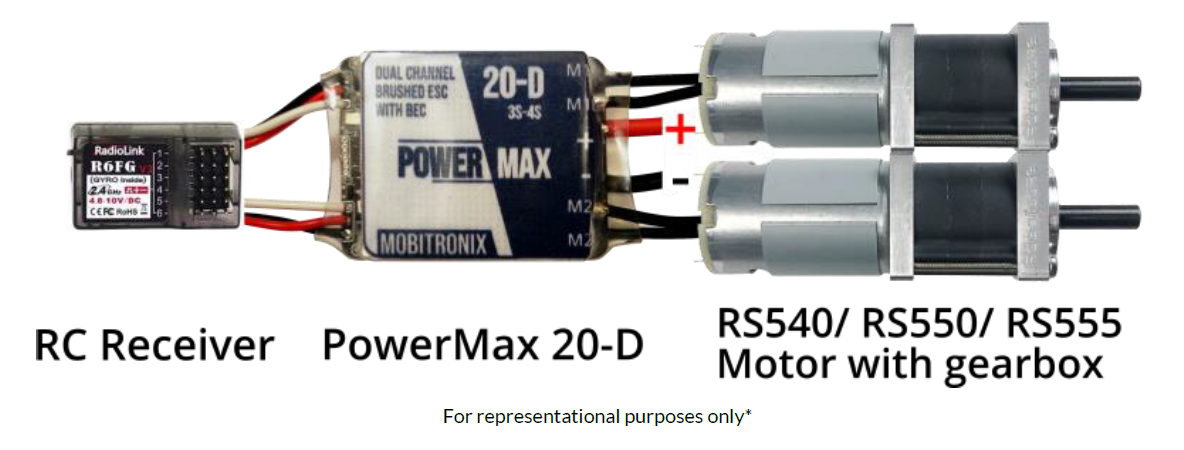

Sample Setup

Brushed ESC
