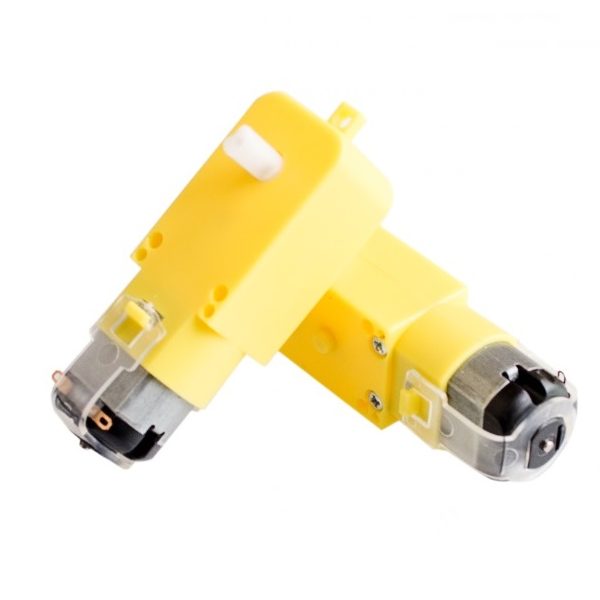

DC Straight BO Motor

DC Straight offer our customers an excellent quality range of BO-1 series motors. Low cost high performance dc geared motor with wide operating voltage range of 3-12 volts dc and good output torque capability.

Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors. Low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. Available with 60 and 150 RPM. The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD platforms.

Weight 20 g
Dimensions 6 × 2 × 2 cm
RPM

60 RPM, 100 RPM, 300 RPM

Operating Voltage (VDC)

3 ~ 12

Shaft Length (mm)

8.5

No Load Current (mA)

40-180mA.

Rated Speed After Reduction (RPM)

300
