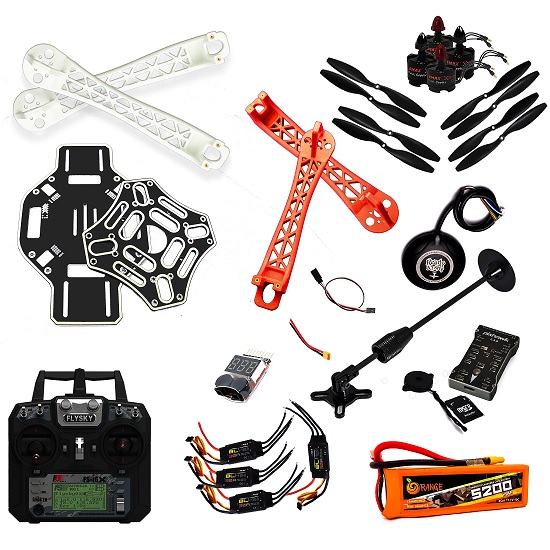

ARF Quadcopter Advanced Combo Kit

36,000.00

Following two motors along with the propellers are included in this combo pack,

  • EMAX MT2213 935KV BLDC Motor CCW With Prop1045 Combo (Original)

This ARF Quadcopter EMAX MT2213 935KV BLDC Motor CCW With Prop1045 Combo (Original) is motor and propeller combo for use in multi-copters such as tri, quad, hex, and octo, with the ability of transient response and stability. High efficiency with better materials. With prop adapter which is specially made to adjust the rotation of CCW (counter-clockwise) propellers. The ARF Quadcopter EMAX MT2213 935KV BLDC Motor CCW With Prop1045 Combo (Original) is easy to install with high quality and durability in use.

  • EMAX MT2213 935KV BLDC Motor CW With Prop1045 Combo (Original)

The EMAX MT2213 935KV BLDC Motor CW With Prop1045 Combo (Original) is same as the above motor but used to spin the propellers in the clockwise direction.

This EMAX MT2213 935KV BLDC Motor CCW With Prop1045 Combo (Original) is motor and propeller combo for use in multi-copters such as tri, quad, hex, and octo, with the ability of transient response and stability. High efficiency with better materials.

With prop adapter which is specially made to adjust the rotation of CW (clockwise) propellers. The EMAX MT2213 935KV BLDC Motor CCW With Prop1045 Combo (Original) is easy to install with high quality and durability in use.

Emax BLHeli Series 30A ESC with Oneshot (Original)

The electronic speed control, or ESC, is what tells the motors how fast to spin at any given time. You need four ESCs for a quadcopter, one connected to each motor. The ESCs are then connected directly to the battery. EMAX BLHELI SERIES 30A ESC  is a brushless dc motor speed controller.

The low output resistance greatly enhances the power stability, and this will improve the great battery life. The EMAX BLHELI SERIES 30A ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for last 10 seconds only.

Specification and Features :

  1. Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB
    1. Materials: glass fiber + polyamide-nylon
    2. Frame Weight: 280g.
    3. Height: 55mm
    4. Colored arms for orientation to keep you flying in the right direction.
    5. Power distribution board included in this item(inbuilt PCB).
    6. Pre-threaded brass sleeves for all frame bolts.
    7. Large mounting tabs on main frame bottom plate for easy camera mounting.

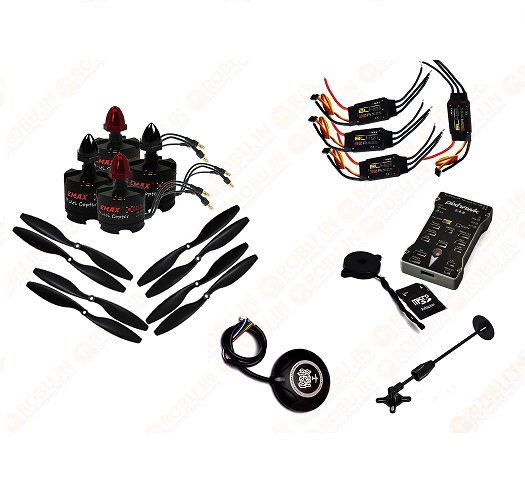

  2. EMAX MT2213 935KV BLDC Motor CCW With Prop1045 Combo (Original)

    1. Brand Name: Emax
    2. Item Name: Emax MT2213 935KV brushless motor
    3. KV: 920 KV
    4. ESC: 18A
    5. Thrust: 860G
    6. Propeller: 8″-10″
    7. Diameter: 28 mm
    8. Length: 39.5 mm
    9. Weight: 53 gm
  3. EMAX MT2213 935KV BLDC Motor CW With Prop1045 Combo (Original)

    1. Brand Name: Emax
    2. Item Name: Emax MT2213 935KV brushless motor
    3. KV: 920 KV
    4. ESC: 18A
    5. Thrust: 860G
    6. Propeller: 8″-10″
    7. Diameter: 28 mm
    8. Length: 39.5 mm
    9. Weight: 53 gm
  4. Emax BLHeli Series 30A ESC with Oneshot (Original)

    1. Constant Current : 30A
    2. Burst Current: 40A for 10 sec.
    3. Battery required : 2-4 S (Orange battery)
    4. BEC Voltage : 5V / 2A
    5. Size : 52 x 26 x 7 mm.
    6. Weight: 28 gm
  5. Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller

    1. Processor
      1. 32bit STM32F427 Cortex M4 core with FPU.
      2. 168 MHz.
      3. 128 KB RAM.
      4. 2 MB Flash.
      5. 32-bit STM32F103 failsafe co-processor.
    2. Sensors
      1. ST Micro L3GD20H 16 bit gyroscope.
      2. ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
      3. Invensense MPU 6000 3-axis accelerometer/gyroscope.
      4. MEAS MS5607 barometer.
    3. Interfaces
      1. 5x UART (serial ports), one high-power capable, 2x with HW flow control.
      2. 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
      3. Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
      4. Futaba S.BUS® compatible input and output.
      5. PPM sum signal input.
      6. RSSI (PWM or voltage) input.
  6. Ublox NEO-M8N High Precision GPS Built-in Compass for APM, AMP2.6, APM 2.8 and Pixhawk 2.4.6, Pixhawk 2.4.8

    1. Navigation update rate up to 10 Hz
    2. Rechargeable 3V lithium backup battery
    3. Low noise 3.3V regulator
    4. Power and fix indicator LEDs
    5. Receiver type 72-channel u-box M8 engine
    6. GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
    7. SBAS L1 C/A: WAAS, EGNOS, MSAS
    8. Galileo-ready E1B/C (NEO-M8N)
    9. Nav. update rate1 Single GNSS: up to 18 HZ
    10. Concurrent GNSS: up to 10 Hz
    11. Position accuracy2 2.0 m CEP
    12. Acquisition2 Cold start: 26 s
    13. Aided starts: 2 s
    14. Reacquisition: 1.5 s
  7. UNIVERSAL GPS FOLDING ANTENNA BASE SET/BLACK

    1. Material: CNC Aluminum alloy, carbon glass fiber rod
    2. Mounting rod diameter: 4mm
    3. length of rod: 14 cm.
    4. GPS plate diameter: 40 mm.
    5. Base plate diameter: 35 mm
    6. Mounting hole spacing: 16-35mm
    7. Weight: 20g
  8. Flysky FS-i6X 2.4GHz 10CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver

    1. Channel : 6-10 (Default 6)
    2. Model Type : Fixed-Wing/Glider/Helicopter
    3. RF Range : 2.408-2.475GHz
    4. RF Power : < 20dBm
    5. RF Channel : 135
    6. Bandwidth : 500KHz
    7. 2.4GHz System : AFHDS 2A / AFDHS
    8. Modulation Type : GFSK
    9. Stick Resolution : 4096
    10. Low Voltage Warning : < 4.2V
    11. DSC port : PS/2 Port PPM
    12. Chargeable : No
    13. Antenna Length : 26mm (Dual Antenna)
    14. Weight : 392g
    15. Power : 6V DC 1.5A

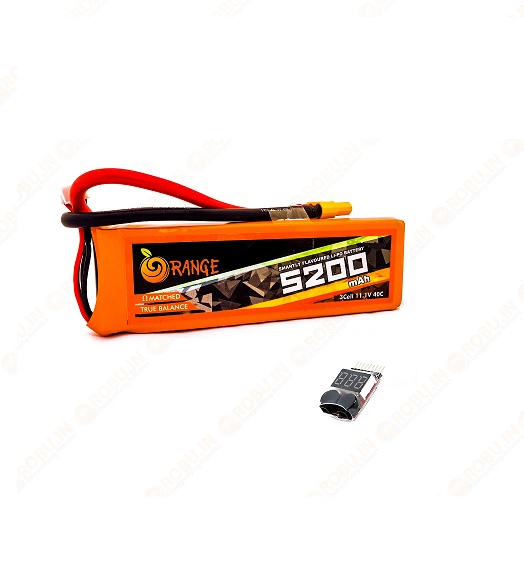

  9. Orange 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo)
    1. Model No: Orange 5200mAh 40C 3S1P
    2. Capacity : 5200mAh
    3. Weight : 360.0g
    4. Voltage : 11.1V
    5. Dimensions : 28x44x137(mm )
    6. Max Continuous Discharge : 40C(208.0A)
    7. Balance Plug : JST-XH
    8. Max Burst Discharge : 80C(416.0A)
    9. Discharge Plug : XT-60
    10. Charge Rate : 1-3C Recommended, 5C Max
  10. Lipo Voltage Checker 1-8S
    1. Input: 1-8S
    2. Battery type: Lipo/LiFe/Li-ion
    3. Cell Voltage Display Range: 0.5v-4.5v
    4. Total Voltage Display Range: 3.7-36v
    5. Alarm set values: Off or 2.7-3.8v
  11. XT60 Male w/ 14AWG Silicon Wire 10cm (1pcs/bag)
    1. Connector Type: XT60 Male
    2. Material of Connector: High-Temp nylon
    3. Length: 10 cm.
    4. High-Quality Connector
    5. Designed for heavy duty
    6. High Power Application
  12. SafeConnect Flat 15CM 22AWG Servo Lead Extension (Futaba) Cable
    1. High-Quality cable
    2. One male and one female connector.
    3. Flat 15 cm Servo Lead Extention (Futaba)
    4. Quality wire and connectors used.
    5. Great for larger planes with servos that experience high loads.
SKU: OLEQ00098 Category:

Description

ARF Quadcopter

This is ARF Quadcopter Advanced Combo Kit which will help you become a quadcopter pilot. Simply get out the soldering iron, put on your safety goggles and began soldering. This ARF Quadcopter Advanced kit has very good products and is available at affordable cost.

For the people who want to build a quadcopter but don’t know where to start. It can be frustrating trying to sort things and figure out what to do.

While we will recommend a complete list of specific parts that we have tested for a complete quadcopter build, the main purpose providing an ARF Quadcopter Advanced Combo Kit needed to build a quadcopter.

Advanced Kit contains:

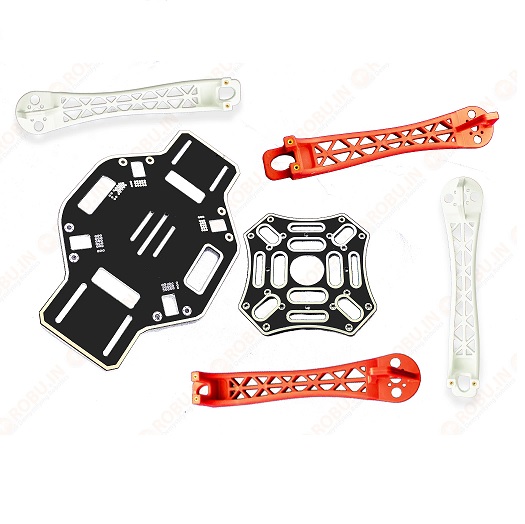

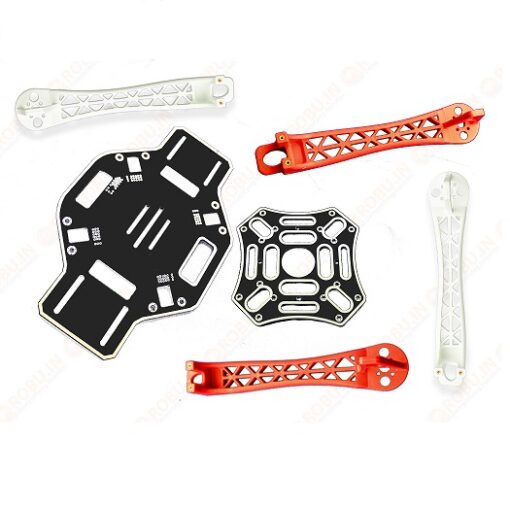

Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB

Every quadcopter or other multirotor aircraft needs a frame to house all the other components. Things to consider here are weight, size, and materials. This ARF Quadcopter Q450 QUADCOPTER FRAME is a well thought out 450mm quad frame built from quality materials.

The main frame is glass fiber while the arms are constructed of ultra-durable polyamide nylon.

This version 3 of the ARF Quadcopter Q450 QUADCOPTER FRAME features integrated PCB connections for direct soldering of your ESCs. This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy.

V3 also comes with stronger molded arms over V1 and V2, so no more arm breakage at the motor mounts on a hard landing.

Additional information

KV

920 KV

ESC

18A

Thrust

860G

Propeller

8″-10″

Constant Current

30A
