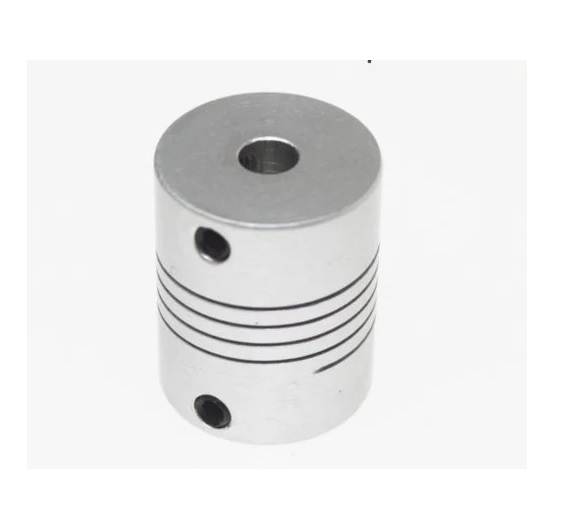

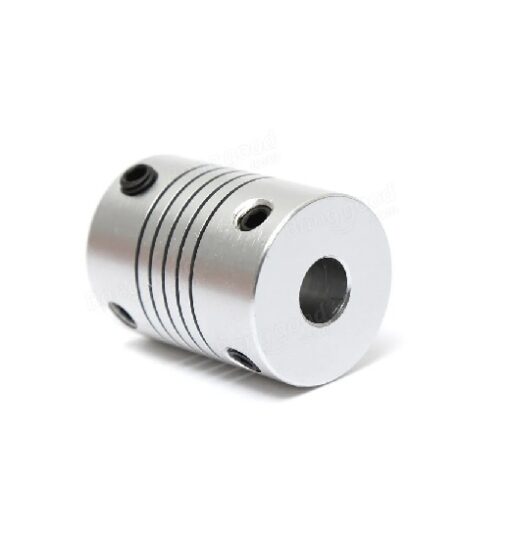

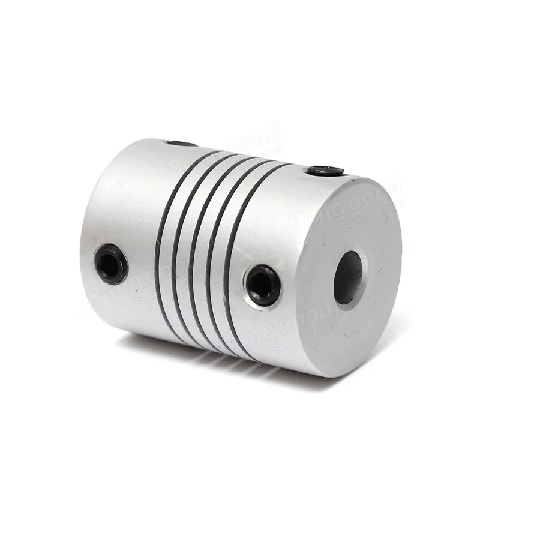

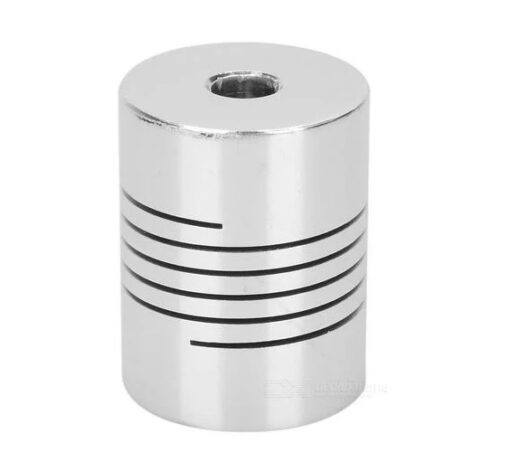

Aluminum Flexible Shaft Coupling 5mm x 5mm


Features :

  1. Corrosion resistance and High Durability
  2. One piece construction with long-lasting performance
  3. Torsional stiffness: Zero backlash
  4. Low moment of inertia offering constant velocity
SKU: OLES0007 Category:


Aluminum Flexible Shaft Coupling

Aluminum Flexible Shaft Coupling type motor coupling can connect your driving shaft with the driven shaft while it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Aluminium Flexible Shaft Coupling 5mm x 5mm.

This Flexible coupling with the outer diameter of 19mm and the length of 25mm is machined aluminum coupling. First bore diameter is 5mm and the second bore diameter is of 5mm.

Aluminum Flexible Shaft Coupling comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects.

Such couplings are also known as Beam coupling, helical coupling, Flexible coupling.

Helical cut makes them behave like a springy in the X Y and Z linear axis but not in the rotational axis. That means that you won’t get more backlash, hence they are suitable for precision CNC work.

A coupling is a device which transmits power and torque.
