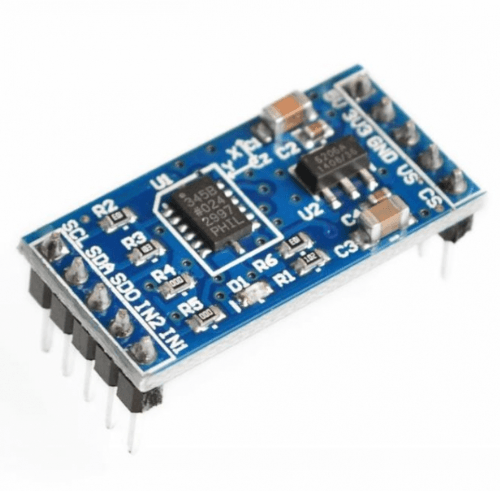

ADXL345 3 Axis Accelerometer Gravity Module


  • On-board ADXL345, it’s a low cost cap-based accelerometer sensor
  • Support 5V/3.3V voltage input, onboard RT9161, better performance than 1117, faster load the appropriate speed, it is ideal for high noise power supply environment
  • Common Pins were lead out, Pin distance is standard 100mil (2.54mm), compatible for your new system
  • Communication: I2C
GTIN: 8900000011407 SKU: ol-p-0000060 Category: Tags: , ,


ADXL345 3 Axis Accelerometer Gravity

ADXL345 3 Axis Accelerometer Gravity Module is a low-power, 3-axis MEMS accelerometer modules with both I2C and SPI interfaces. The Breakout boards for these modules feature on-board 3.3v voltage regulation and level shifting which makes them simple to interface with 5v microcontrollers such as the Arduino. The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz.
