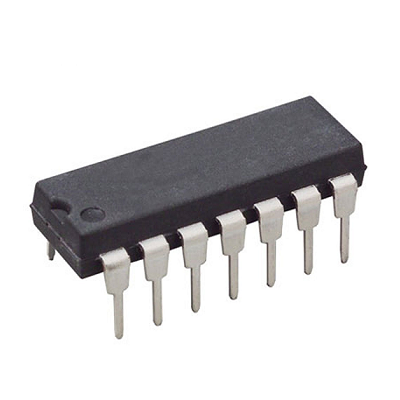

7486 Quad XOR Logic Gate IC


  • Pin and Function Compatible with Other Standard Logic Families
  • Quad 2-Input Exclusive-OR Gate
  • Number of: 14 Pins
  • Mounting: Through Hole
  • Type: Quad
GTIN: 8900000012602 SKU: ol-p-0000122 Category: Tags: ,


7486 IC

7486 IC is a member of 74xxx series gate ICs and has the functionality of the EX-OR (Exclusive OR) gate or function. 7486 has 4 EX-OR gates of 2 inputs in 1 package.  The internal gates in the ICs are made of Schottky Transistor of low power. Another name of this IC is ‘quadruple 2 inputs EXOR gate’.


  1. Product Images are shown for illustrative purposes only and may differ from the actual product.
  2. For Technical Specifications about the IC go this.

Additional information

Weight 5 g
Dimensions 20 × 15 × 1 cm
Operating Voltage Range


Output Current at VCC:


Propagation Delay:
