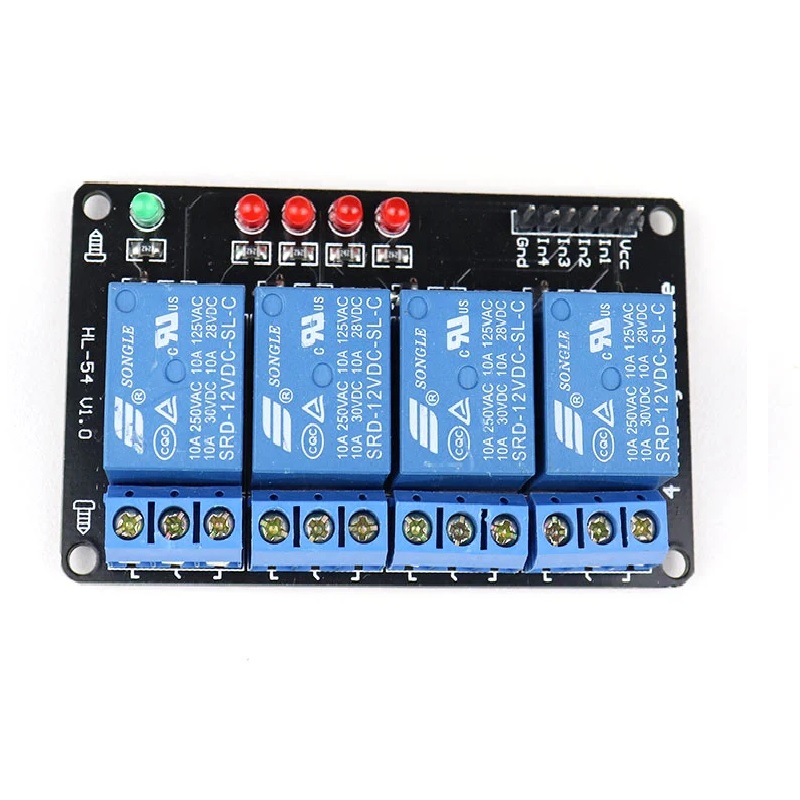

4 Channel 5v Relay Module

This is a  4 Channel 5v Relay interface board, be able to control various appliances and other equipment with large current. It can be controlled directly by Microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Features:

  1.  4 Channel 5v Relay module and each one needs 15-20mA Driver Current.
  2. Both controlled by 12V and 5V input Voltage.
  3. Equipped with high-current relay, AC250V 10A ; DC30V 10A.
  4. Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
  5. Indication LED’s for Relay output status
Weight 50 g
Dimensions 7 × 5 × 1 cm
Operating Voltage (VDC)

3.3 ~ 5

Trigger Voltage (VDC)

5

Trigger Current (mA)

20

Switching Voltage (VAC)

240@10A

Switching Voltage (VDC)

30@10A

Storage condition (℃)

– 65 to 125
