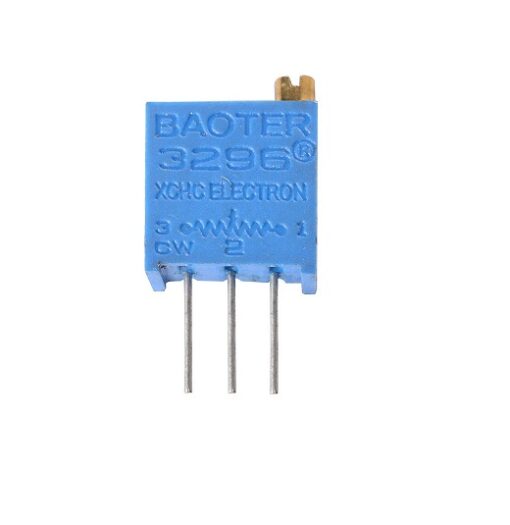

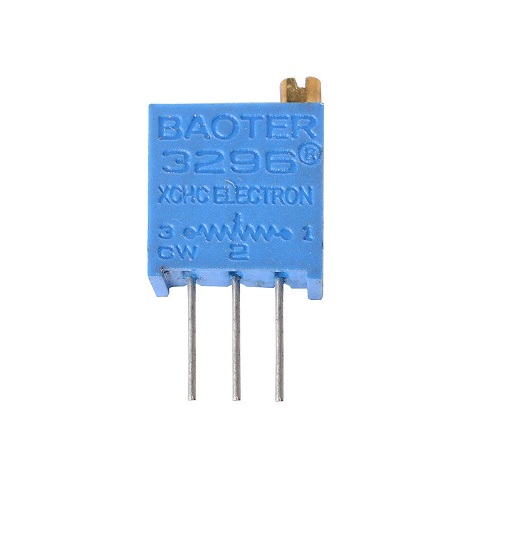

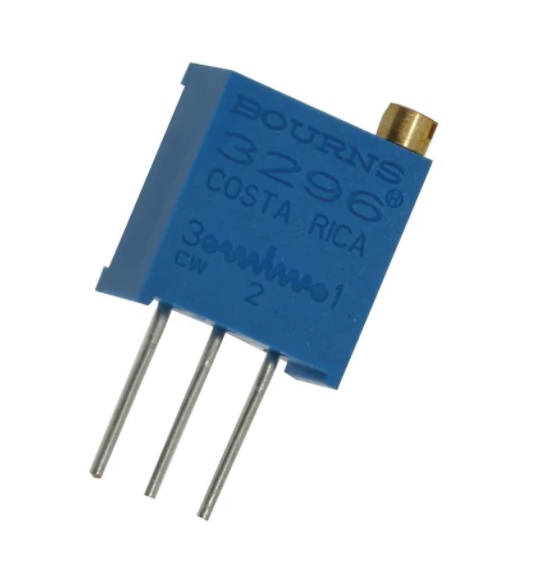

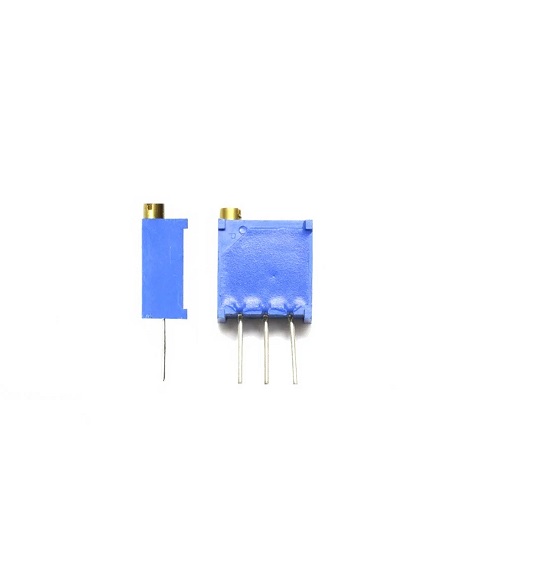

3296W 1k Ohm Trimpot Trimmer Potentiometer
- Series: 3296
- Resistance Tolerance : 10%
- Mounting Style: PCB Mount
- Adjustment: Top Slot
- Number of Turns: Multiturn
It is a 3296W 1k Ohm Trimpot Trimmer Potentiometer. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.
Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit.
The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.
The 3296W potentiometer has a single turn, which can be used to preset a value.
