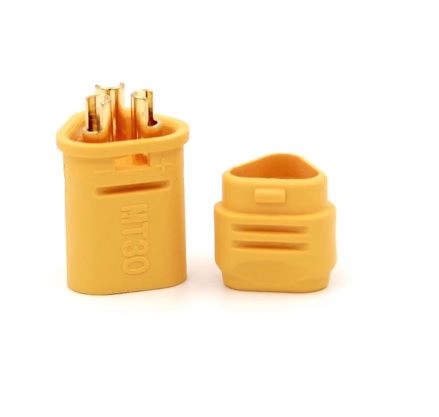

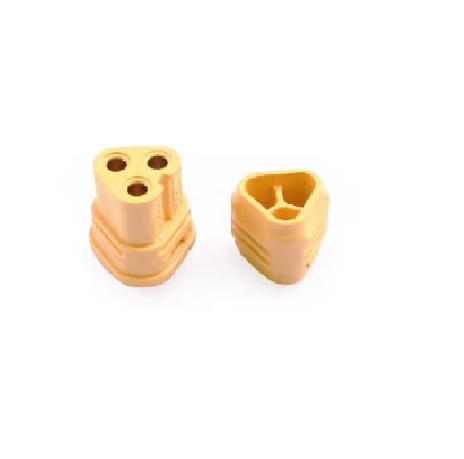

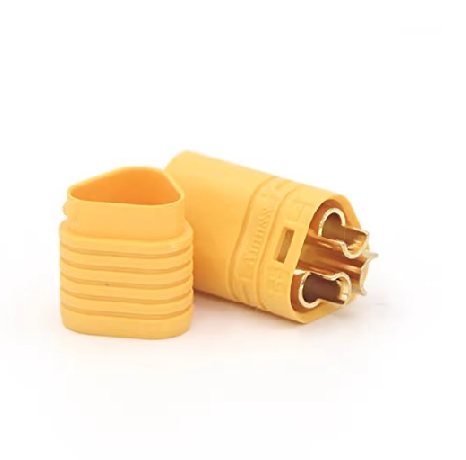

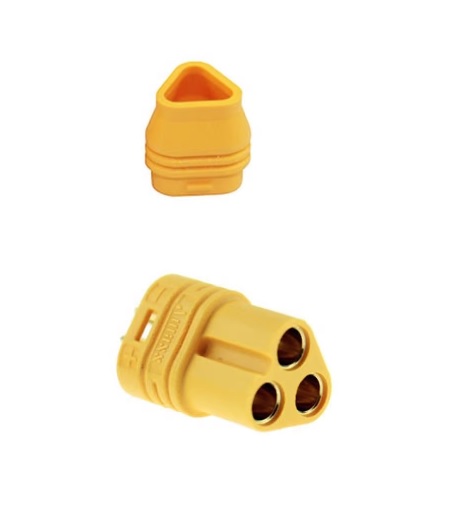

3 Pole motor connector female

The MT30 3 Pole Motor Connector female set is the perfect solution for securing your brushless motor / ESC connections for up to 16AWG wires. The connector set featured with gold plated connecting points, high-quality plastic with ideal design.

Both male and female connectors are fitted with 2mm bullet points to solder the wires and supplied with a cable tidy attachment Cap to keep things nice and neat.

The 3 pole motor connector female are manufactured from toughened plastic and provide a very secure fit making them perfect for EDF and multi-rotor applications.

Note: Connector back Cap’s Lock is designed to be very tight, Once you locked it then it is little tough to reopen it.

Weight 2.96 g
Dimensions 4 × 1 × 1 cm
Gender

Female

Allowed Wire Size (AWG)

18 ~ 16

Rated Operating Voltage (VDC)

500

Current Handling Capacity (A)

60

No. of Contact Points

3

Connector Type

MT30

Contact Material

Brass

Contact Plating

Gold flash

Operating Temperature Range (°C)

-20 to 120

Flammability Rating

UL94V-0

Color

Yellow
