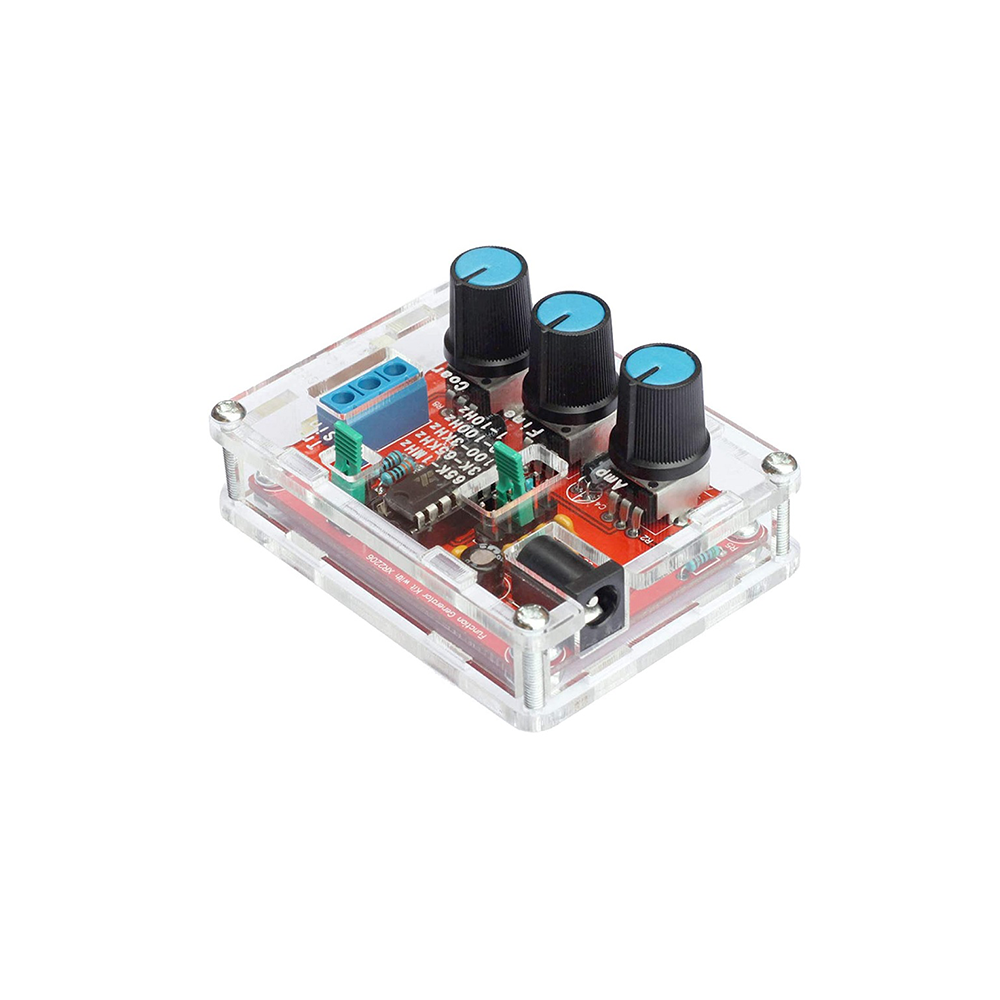

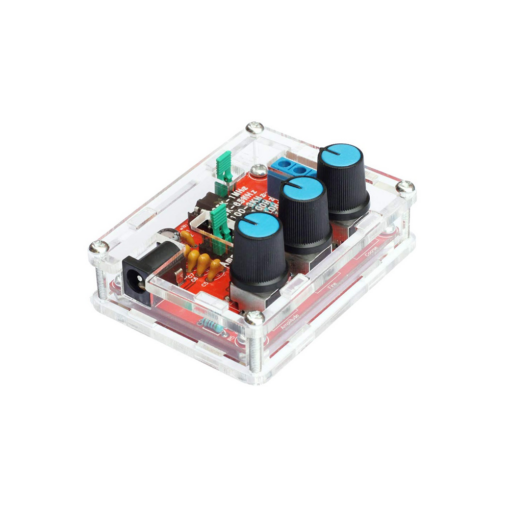

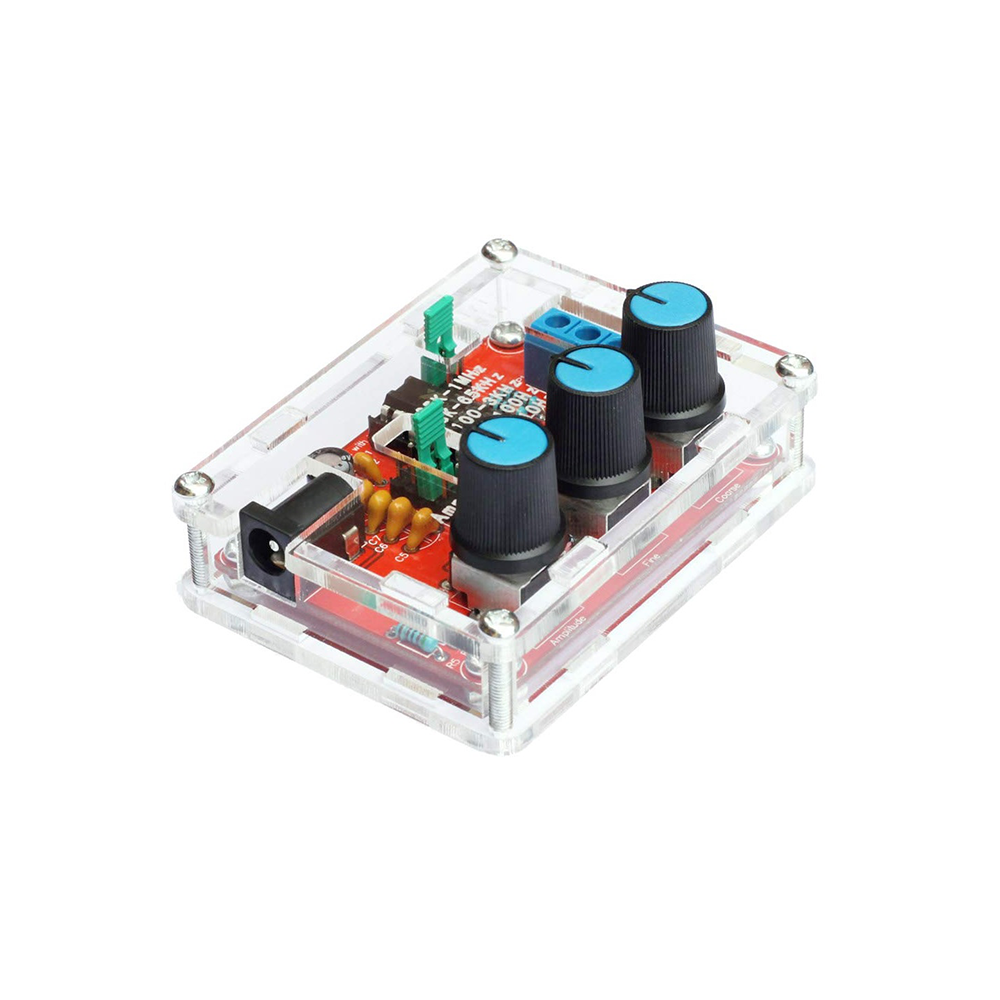

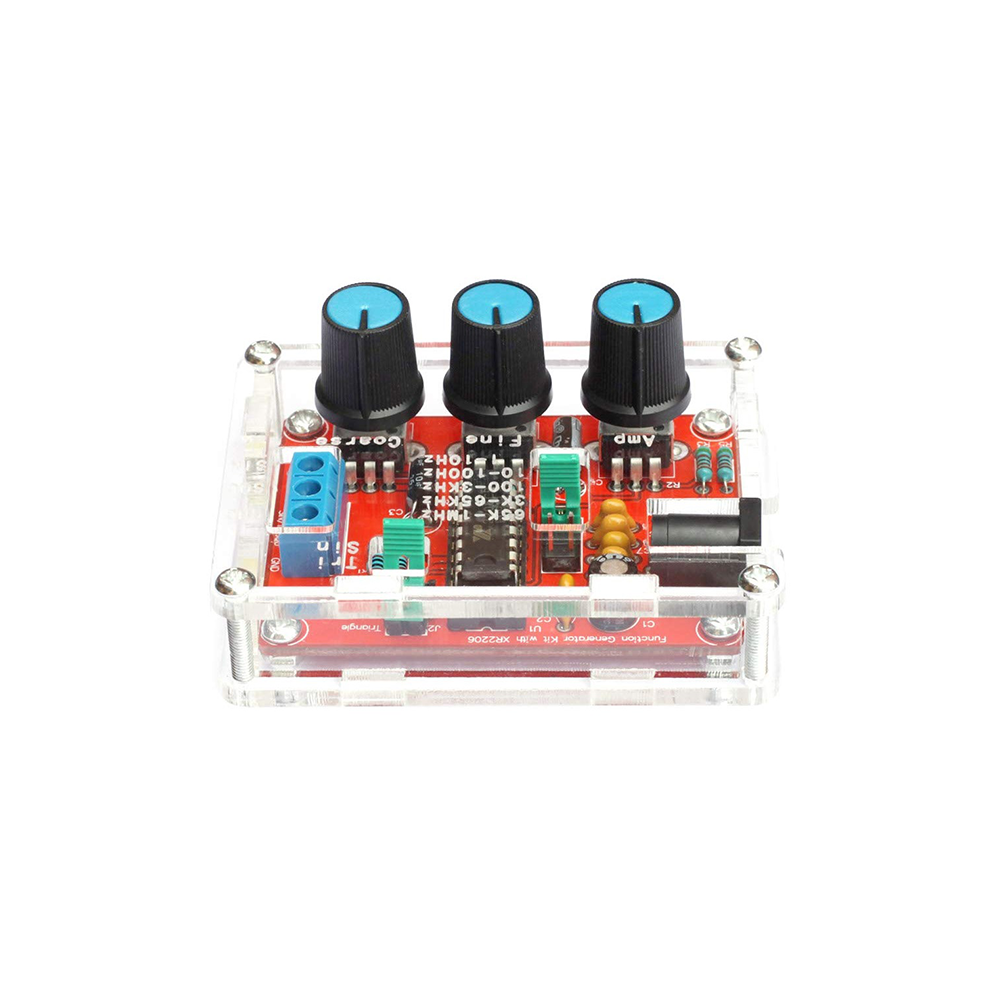

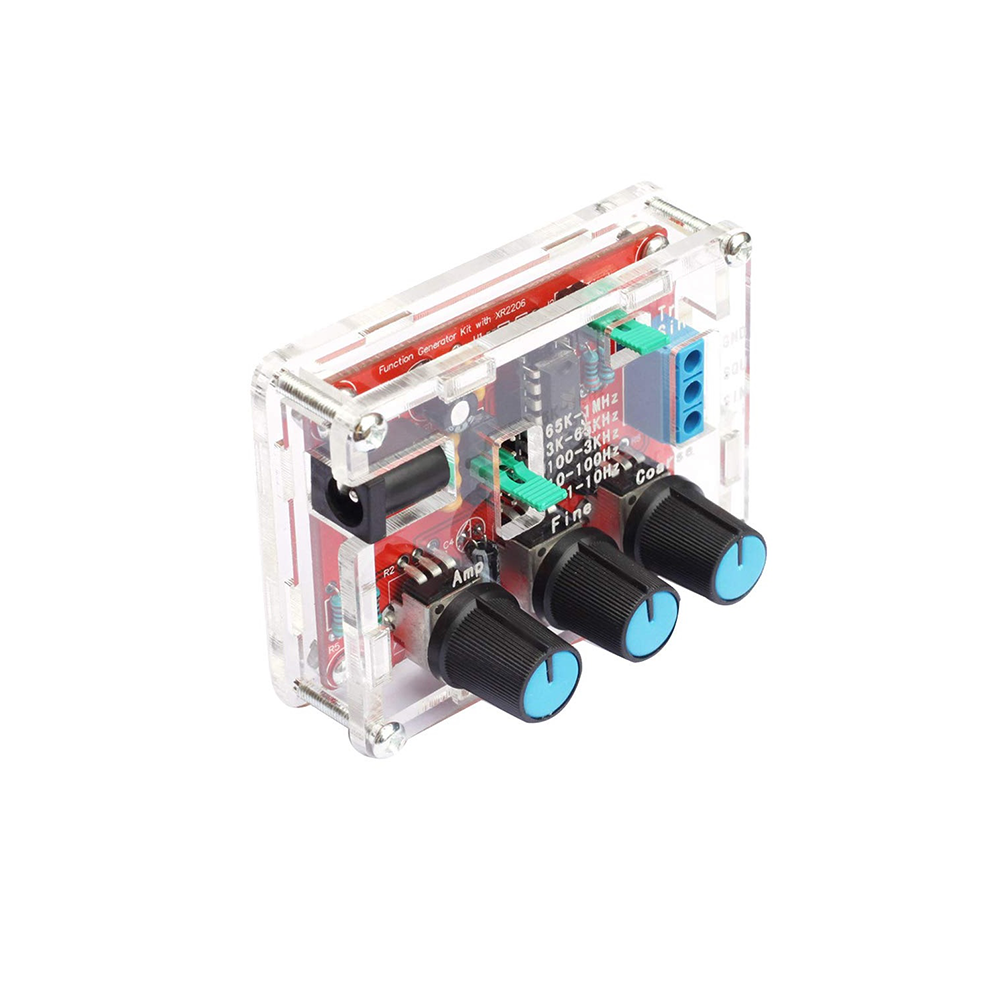

XR2206 High Precision generator DIY kit is professional product to generate sine/triangle/square wave. It’s a DIY kit for you to weld and install.
High resolution, can generate sine/triangle/square waveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
All are through hole components, easy for installation.
|Dimensions||12 × 8 × 2 cm|
600 Ohm + 10%
+0.05dB 1Hz – 100kHz
0-3V at 9V DC Input
Less than 1% (at 1KHz)
