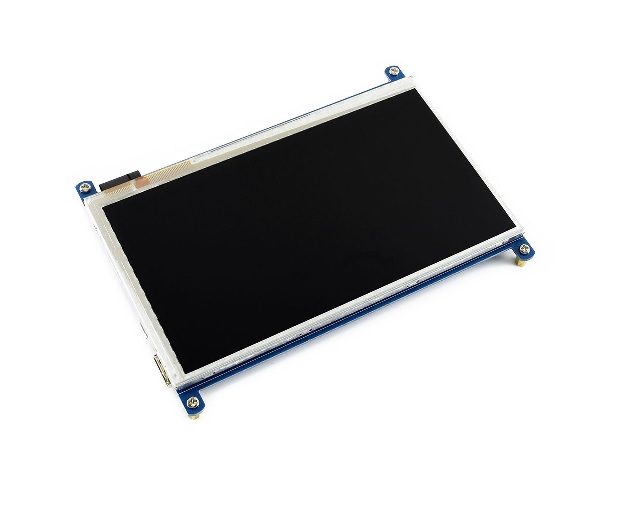

Waveshare LCD 7inch

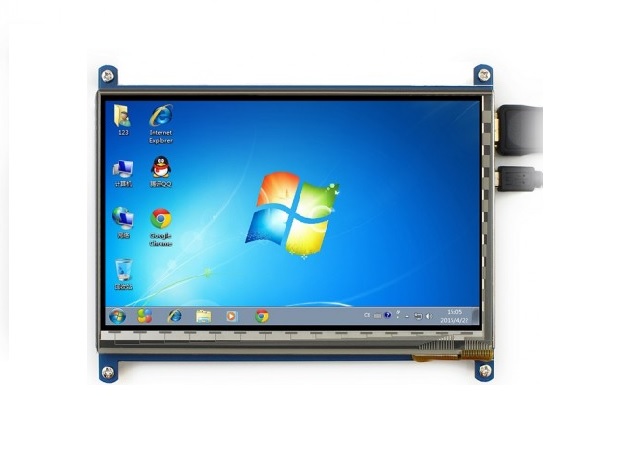

The waveshare LCD 7inch display module with Capacitive touch and HDMI Media Interface is an ideal solution for single-board computer display. Easy to use, this LCD supports SBC’s like Raspberry Pi, Beagle Bone Black, Banana Pi etc. Ideal for your application if it involves Video playing etc.

  1. EMI and ESD protection, in compliance with CE certification
  2. VCOM voltage adjustment for optimizing display effect
  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  4. USB and power input solder pads, breakout USB interface, easy for connecting external power supply
  5. Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display
Weight 200 g

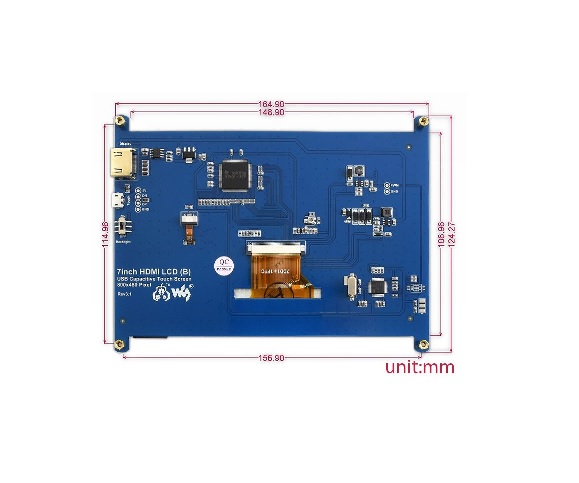

Dimensions 21 × 15 × 5 cm
Display Size

7 inch

Resolution

800×480

Display Port

HDMI

Display Panel

TFT

Touch Type

Capacitive

Touch Port

USB

Touch Points

5-Points
