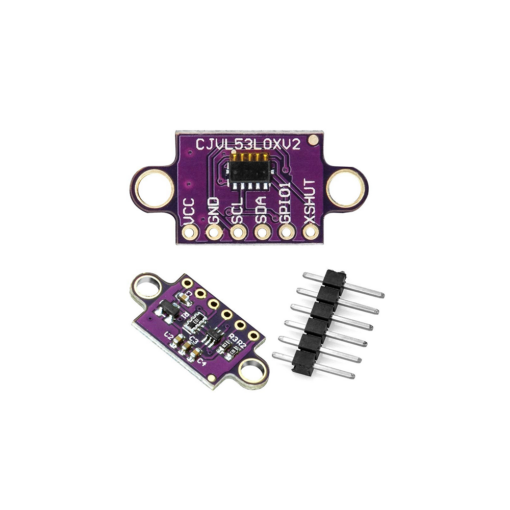

VL53L0X Time Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2C IIC


  • Maximum Sensoring Distance: 2m
  • Working Voltage: 2.6V – 5.5V
  • Communication mode: serial output, PWM output, the chip itself IIC output.
  • Default configuration: serial baud rate 9600, automatic output, high precision mode.
GTIN: 8900000024711 SKU: 14009 Category: Tag:


VL53L0X Laser Ranging Sensor

It  is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X Laser Ranging Sensor, so we recommend careful reading of its datasheet before using this product

The VL53L0X is a great IC, but its small, lead less, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for micro controllers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible

Fully integrated miniature module
– 940 nm laser VCSEL
– VCSEL driver
– Ranging sensor with advanced embedded micro controller
– 4.4 x 2.4 x 1.0 mm

Fast, accurate distance ranging
– Measures absolute range up to 2 m
– Reported range is independent of the
target reflectance
– Advanced embedded optical cross-talk compensation to simplify cover glass selection

Eye safe
– Class 1 laser device compliant with latest
standard IEC 60825-1:2014 – 3rd edition

Easy integration
– Single reflowable component
– No additional optics
– Single power supply
– I2C interface for device control and data transfer
– Xshutdown (reset) and interrupt GPIO
– Programmable I2C address
