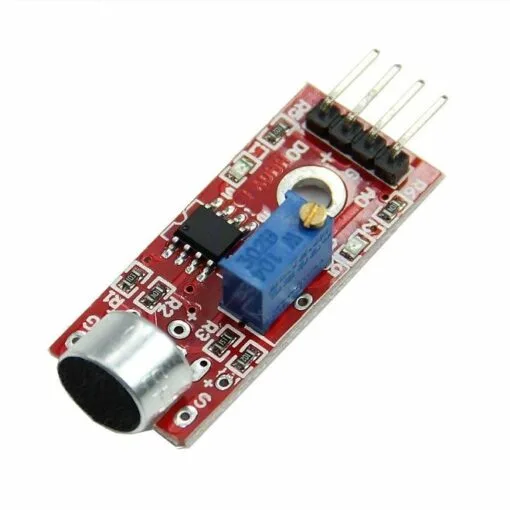

High Sensitivity Sound Sensor Module
- Main chip: LM393, Electret condenser microphone
- Working voltage: DC 3.3-5V
- Induction distance is 0.5M
- Signal output Indication
- Single channel signal output
- The output effective signal is low level.
Sound Sensor Module
Sound Sensor Module or Sound Detection Module Sensor for Intelligent Vehicle Compatible With Arduino is a Single channel signal output Sensor. The output is effective to the low-level sound signal with good fidelity, When there is sound, outputs low level and signal light. It can be used for Acoustic control light, give sound and light alarm working with the Photosensitive sensor, and sound control, sound detect. (The Maximum induction distance is 0.5M)
Note: This sensor only recognizes the availability of sound (vibration principle) cannot identify the size of the sound or the specific frequencies of sound.
