5-60V SSR-10 DD Solid State Relay

610.00

Features:

  1. Long service life and high reliability
  2. Reduced electromagnetic interference
  3. Highly reliable, compact size designed to offer users maximum simplicity
SKU: OLER00069 Category:

Description

Solid State Relay

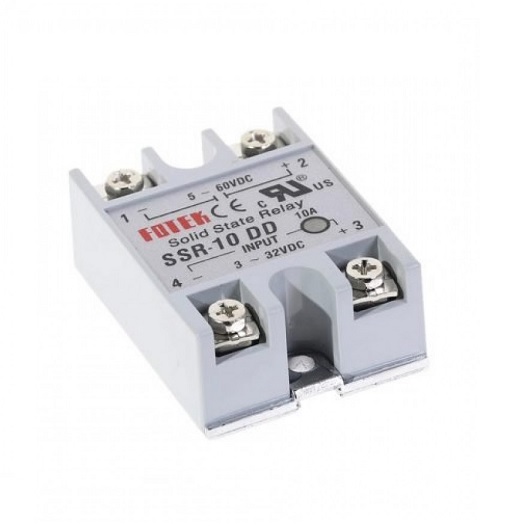

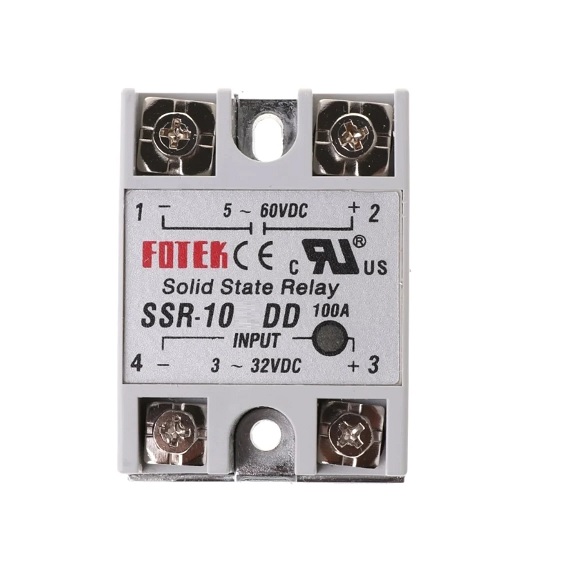

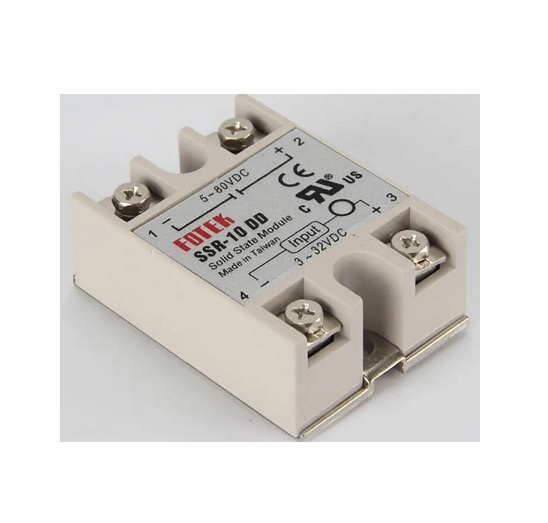

The DC To DC SSR-10 DD Solid State Relay Module (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts.

The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

  1. Rated Load Current: 100A
  2. Dielectric Strength: Over 2.5kVA / 1 min
  3. Trigger Voltage (VDC):3-32VDC
  4. Switching Voltage (VDC):5-200
  5. Operating Temperature Range (C):-20 to 85





Additional information

Weight 93 g
Dimensions 6 × 5 × 2.4 cm
Product Type

Solid State Relay

Rated Load Current (A)

100

Dielectric Strength

Over 2.5kVA / 1 min

Trigger Voltage (VDC)

3-32VDC

Switching Voltage (VDC)

5-200

Operating Temperature Range (°C)

-20 to 85
