SeeedStudio Seeeduino Xiao SAMD21 (Pre-Soldered)

958.00

  • Power ARM Cortex CPU
  • Compatible With Arduino IDE
  • Breadboard Friendly
  • Multiple Development Interfaces

1 in stock (can be backordered)

SKU: OLES0022 Category: Tags: ,

Description

SAMD21

SAMD21

Take a look at Seeeduino XIAO(Pre-Soldered). What a small size and cute looking! It is the smallest member of the Seeeduino family. Seeeduino XIAO(Pre-Soldered) still carries the powerful CPU-ARM Cortex-M0+(SAMD21G18) which is a low-power Arduino microcontroller.

On the other hand, this little board has good performance in processing but needs less power. As a matter of fact, it is designed in a tiny size and can be used for Arduino wearable devices and small projects.

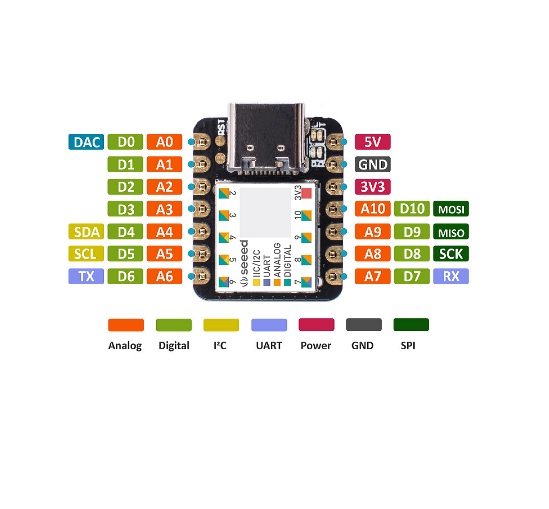

Apart from the strong CPU, Seeeduino XIAO(Pre-Soldered) is excellent in many other functions. It has 14 GPIO PINs, which can be used for 11 analog PINs, 11 digital PINs, 1 I2C interface, 1 UART interface, and 1 SPI interface. Some PINs have various functions, A1/D1 to A10/D10 Pins have PWM functions and Pin A0/D0 has a function of DAC which means you can get true analog signals not PWM signals when you define it as an analog pin, that’s why 14 GPIO PINs can realize more I/O PINs and interfaces.

Moreover, Seeeduino XIAO(Pre-Soldered) supports the USB Type-C interface which can supply power and download code. There are power pads at the back of the XIAO which support the battery and make it designed for wearable devices to become realistic. Except for the power LED, we add a user LED on board for your better coding experience.

Usually a Dev. A board as small as this size will use the chip’s inner crystal oscillator for time fixing, in order to make the clock more accurate, Seeeduino XIAO(Pre-Soldered) layouts an extra 32.768KHz to make the clock more stable.

Additional information

Weight 150 g
Dimensions 3 × 2 × 1 cm
Processor

ARM Cortex M0 CPU(SAMD21G18)

Clock Speed

48MHz

Flash Memory

256 KB

SRAM

32

I/O

14 Pins

Interface

I2C
UART
SPI

USB Connector

Type C
