Rain Drop Detection Sensor Module Wholesale/B2B (Pack of 25)

650.00

Features:
Operating voltage: 5V
Provide both digital and analog output
Adjustable sensitivity
Output LED indicator
Compatible with Arduino, Raspberry and other projects
TTL Compatible
Bolt holes for easy installation

GTIN: 8900000011971 SKU: ol-p-0000088-1 Category: Tags: ,

Description

Rain Sensor Module

The Rain Sensor Module is used for rain detection. It is also for measuring rainfall intensity. Rain sensor can be used for all kinds of weather monitoring and translated into output signals and AO.

Rain Sensor Module Rain Weather Module for Arduino, etc. Rain sensor can be used to monitor a variety of weather conditions and turned into several fixed output signal and Analog output.

It includes a printed circuit board (control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp.

The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output 5V.

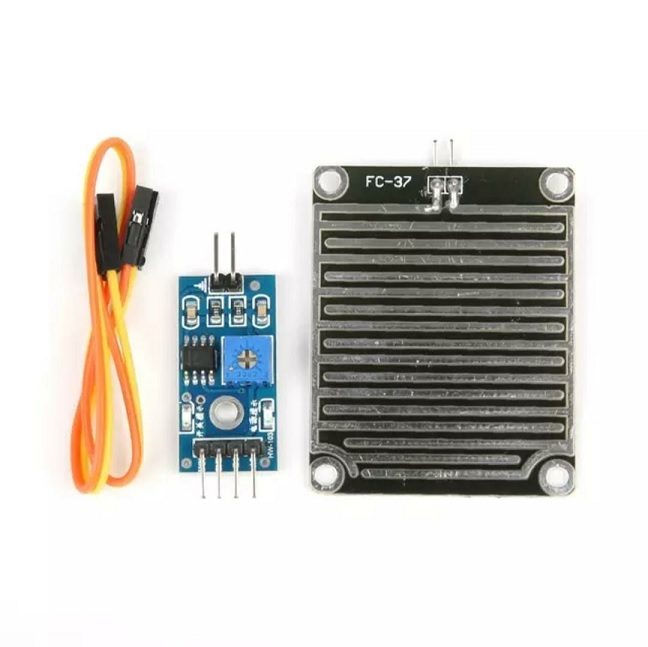

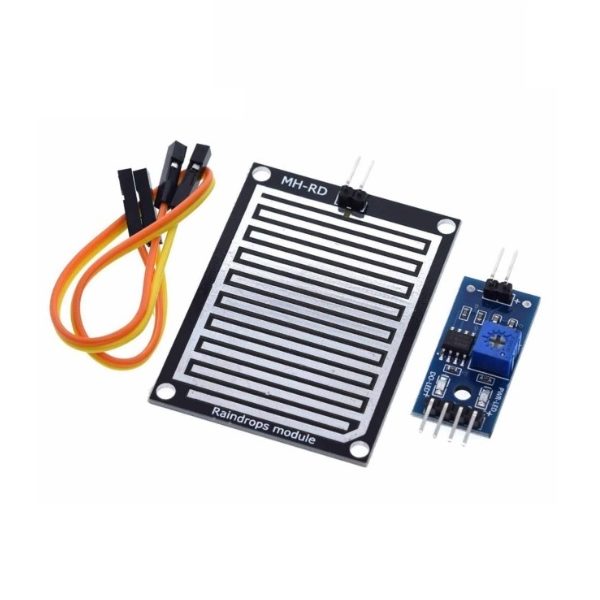

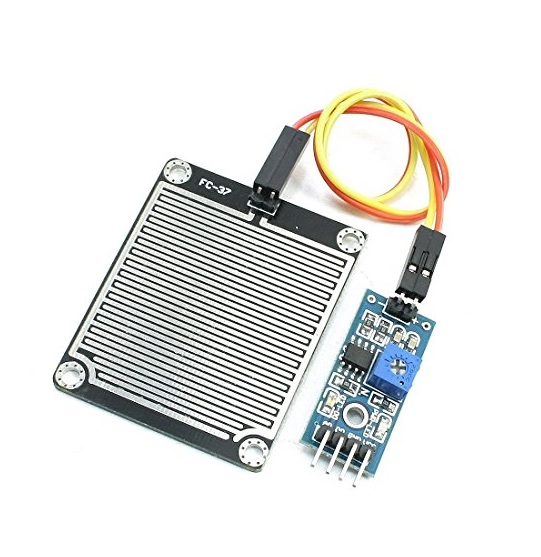

The Rain Sensor Module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity through a potentiometer. The module is based on the LM393 op-amp.

Features

  • The LM393, use of the wide voltage comparator
  • Provide both digital and analog output
  • Output LED indicator
  • Compatible with Arduino
  • TTL Compatible
  • The sensor uses the high-quality FR – 04 double material, the large area of 5.5 * 4.0 CM
  • Treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance
  • The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA;
  • With potentiometer sensitivity adjustment
  • The output format: digital switch output (0 and 1) and analog AO voltage output;
  • Has a fixed bolt hole, convenient installation
