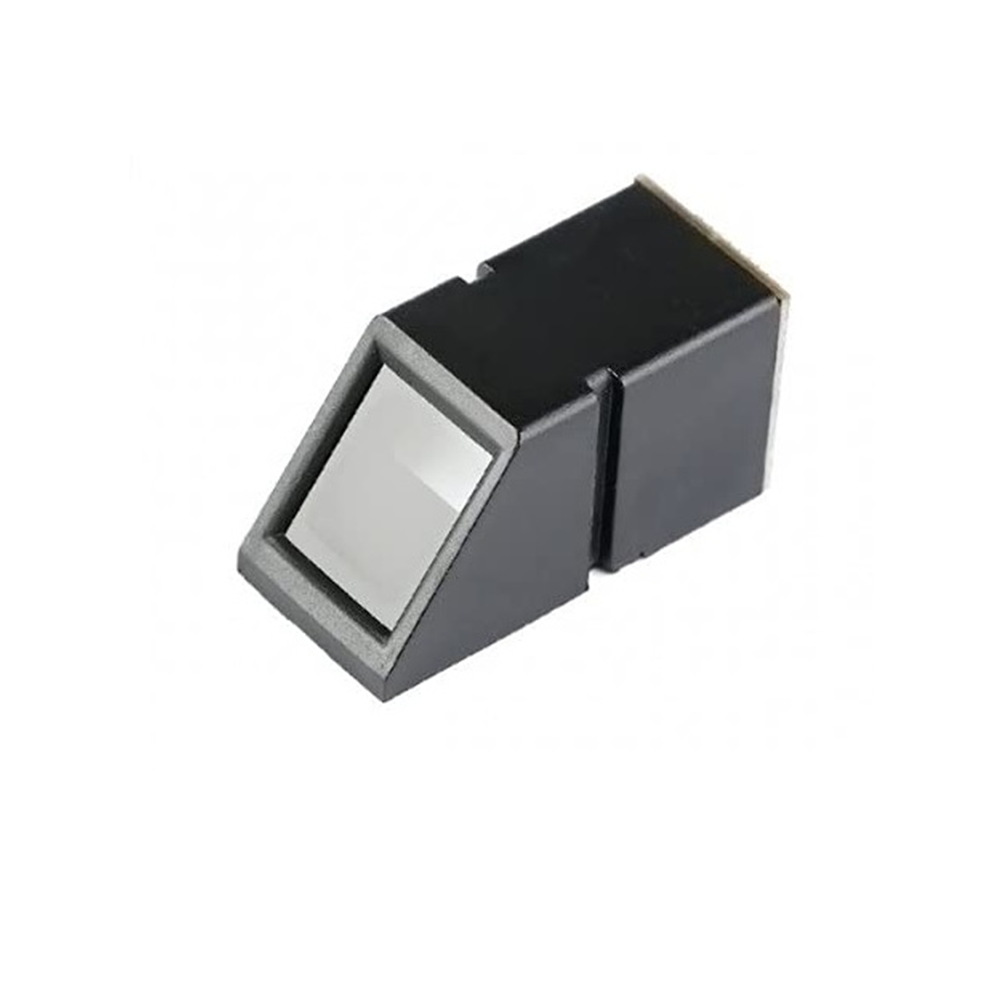

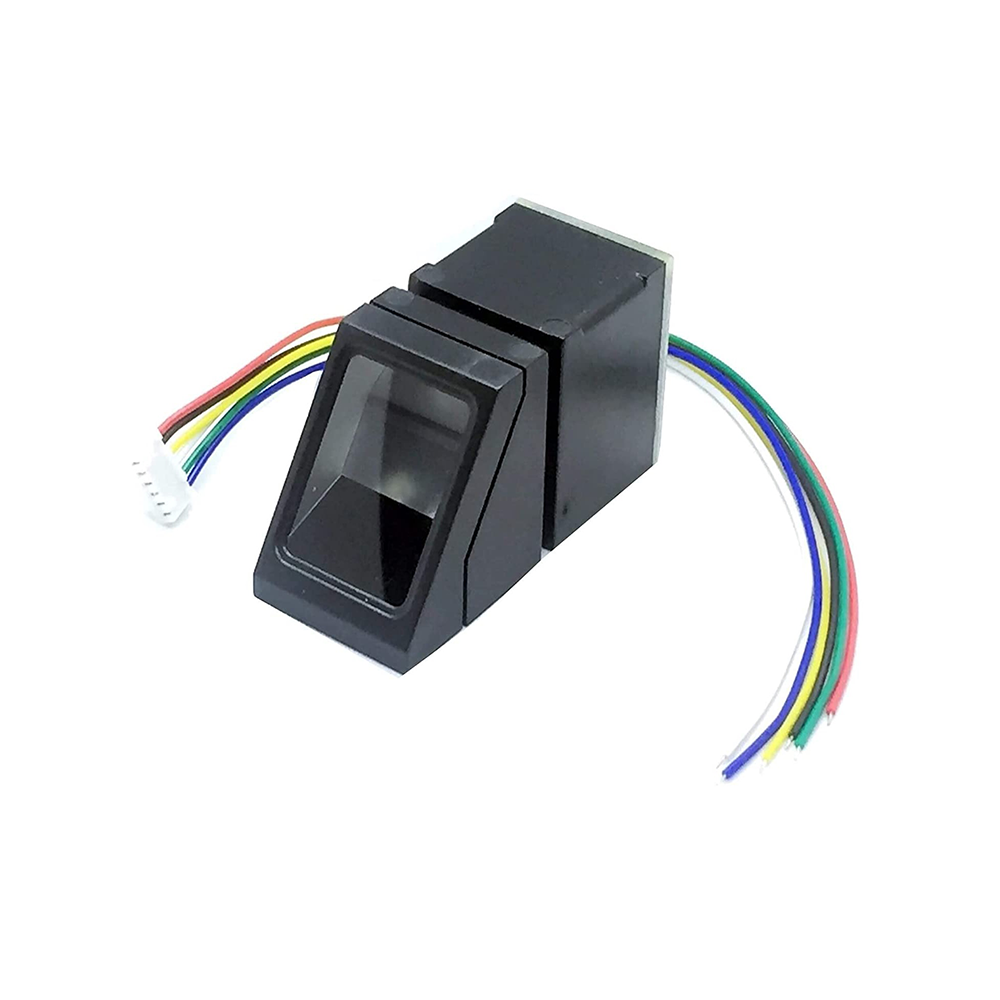

R307 Fingerprint Reader Sensor Module is a sensor with a TTL UART interface for direct connections to microcontroller UART or to PC through MAX232 / USB-Serial adapter. The user can store the fingerprint data in the module and can configure it in 1:1 or 1: N mode for identifying the person.
The FP module can directly interface with 3.3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC serial port. Integrated image collecting and algorithm chip together, ALL-in-One Fingerprint reader can conduct secondary development, can be embedded into a variety of end products. Users can conduct secondary development, can be embedded into a variety of end products, such as access control, attendance, safety deposit box, car door locks
|Dimensions||13 × 11 × 6 cm|
