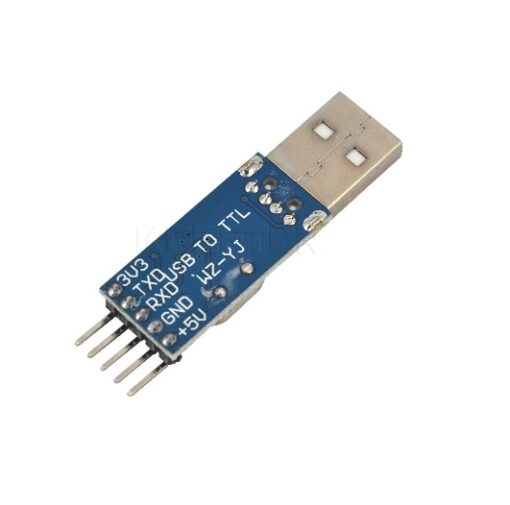

PL2303 USB to TTL Converter

PL2303  USB To TTL Converter Module – 5 Pin. Adopt imported controller RS232 TTL, which can stabilize the flash with high-speed 500mA self-recovery fuse for protection.

Two data transmission indicator can monitor data transfer status in real-time. Reserve 3.3V and 5V pin interface, easy for DDWRT of different voltage system that needs power. The entire board is coated by a high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside, so that the board won’t be burnt down by a material shortcut.

Features of PL2303 USB to TTL USB Converter Module:-



  • Adopt imported controller PL2303HX, which can stabilize the flash with high speed
  • 500mA self-recovery fuse for protection
  • Two data transmission indicator can monitor data transfer status in real time
  • Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power
  • The entire board is coated by the high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside,
  • so that the board won’t be burnt down by material shortcut.
  • Electrostatic package ensures the board will not be damaged before use
  • Excellent driver support–drivers are available for Windows 98 to Windows 7 (32 bit and 64 bit), Mac OS 8 to OS X (32 bit and 64 bit) and Linux. Even Android is supported.
Weight 5 g
Dimensions 5.2 × 1.55 × 0.65 cm
Input Supply voltage (V)

3.3 ~ 5

Model

PL2303HX

Support

Windows 98 to Windows 7 (32 bit and 64 bit)
Mac OS 8 to OS X (32 bit and 64 bit)
Linux
