33pF 1206 Surface Mount Multilayer Ceramic Capacitor (Pack of 3)

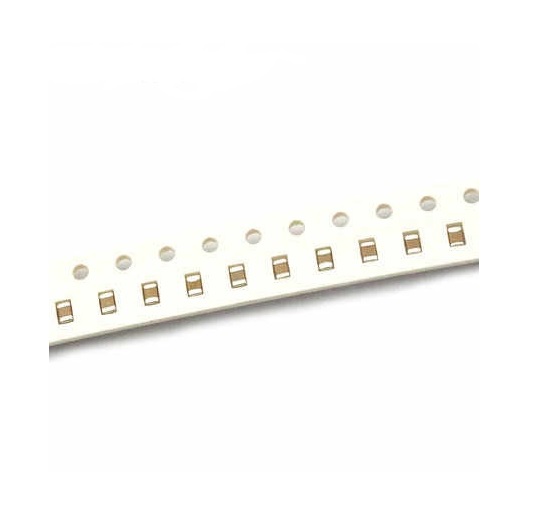

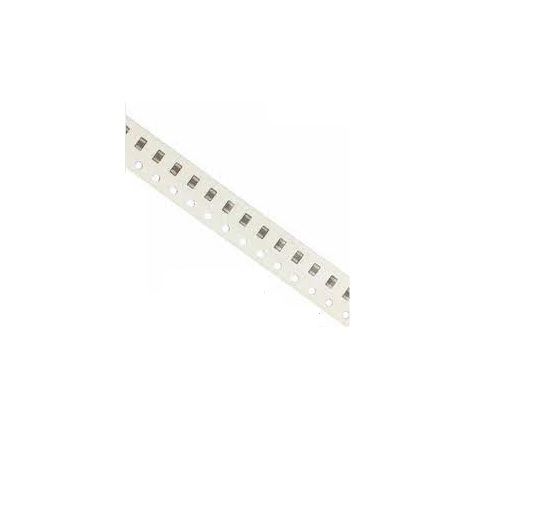

  1. Supplied in tape on reel
  2. Nickel-barrier end termination
  3. RoHS compliant
  4. Halogen-free compliant
SKU: OLEC00064 Category:


Multilayer Ceramic Capacitor

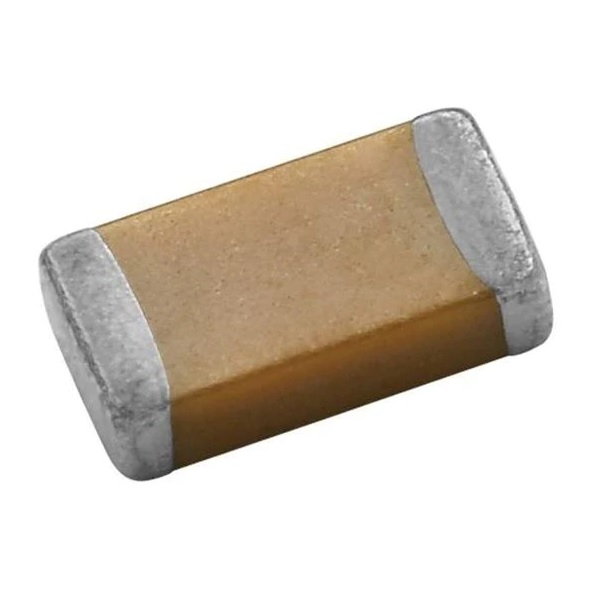

33pF 1206 Surface multilayer Ceramic Capacitor is a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained.

Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure.

The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes.

Standard end terminations use a nickel barrier layer and a tin overplate to provide excellent solderability for the customer.

These multilayer Ceramic Capacitor are designed in adherence with international standards and norms using superior quality raw material and advanced technology. Owing to their long and fault-free life, these capacitors are widely used in various electronic equipment for different purposes.

These have a construction of ceramic dielectric, while the inner electrode and termination are manufactured using palladium or silver.

  1. Consumer electronics, for example
    – Tuners
    – Television receivers
    – All types of cameras
  2. Telecommunications
  3. Data processing

Additional information

Weight 1 g
Dimensions 5 × 7 × 2 cm
Operating Temperature Range (°C)

-55 to 125

Dissipation Factor (%)

≤ 0.1 %

Mounting Type
