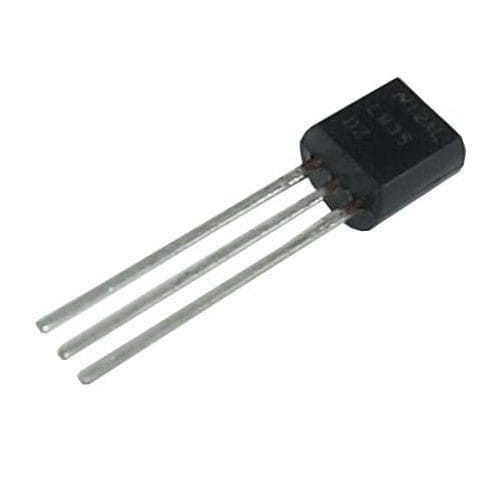

LM35 TO-92-3 Board Mount Temperature Sensors


  • Calibrated directly in Celsius (Centigrade)
  • Linear + 10.0 mV/C scale factor
  • 5C accuracy guaranteeable (at +25C)
  • Rated for full −55 to +150C range
  • Suitable for remote applications
  • Low cost due to wafer-level trimming
  • Operates from 4 to 30 volts
  • Less than 60 µA current drain
  • Low self-heating, 0.08C in still air n Nonlinearity only ±1⁄4C typical
  • Low impedance output, 0.1 for 1 mA load
GTIN: 8900000011896 SKU: ol-p-0000080 Category: Tags: ,


LM35 Temperature Sensor

LM35 Temperature Sensor is a precession Integrated circuit  sensor, whose output voltage varies, based on the temperature around it. It is a small and cheap IC which can be used to measure temperature anywhere between -55C to 150C. It can easily be interfaced with any microcontroller that with ADC Capabilities or any development platform like Arduino.
